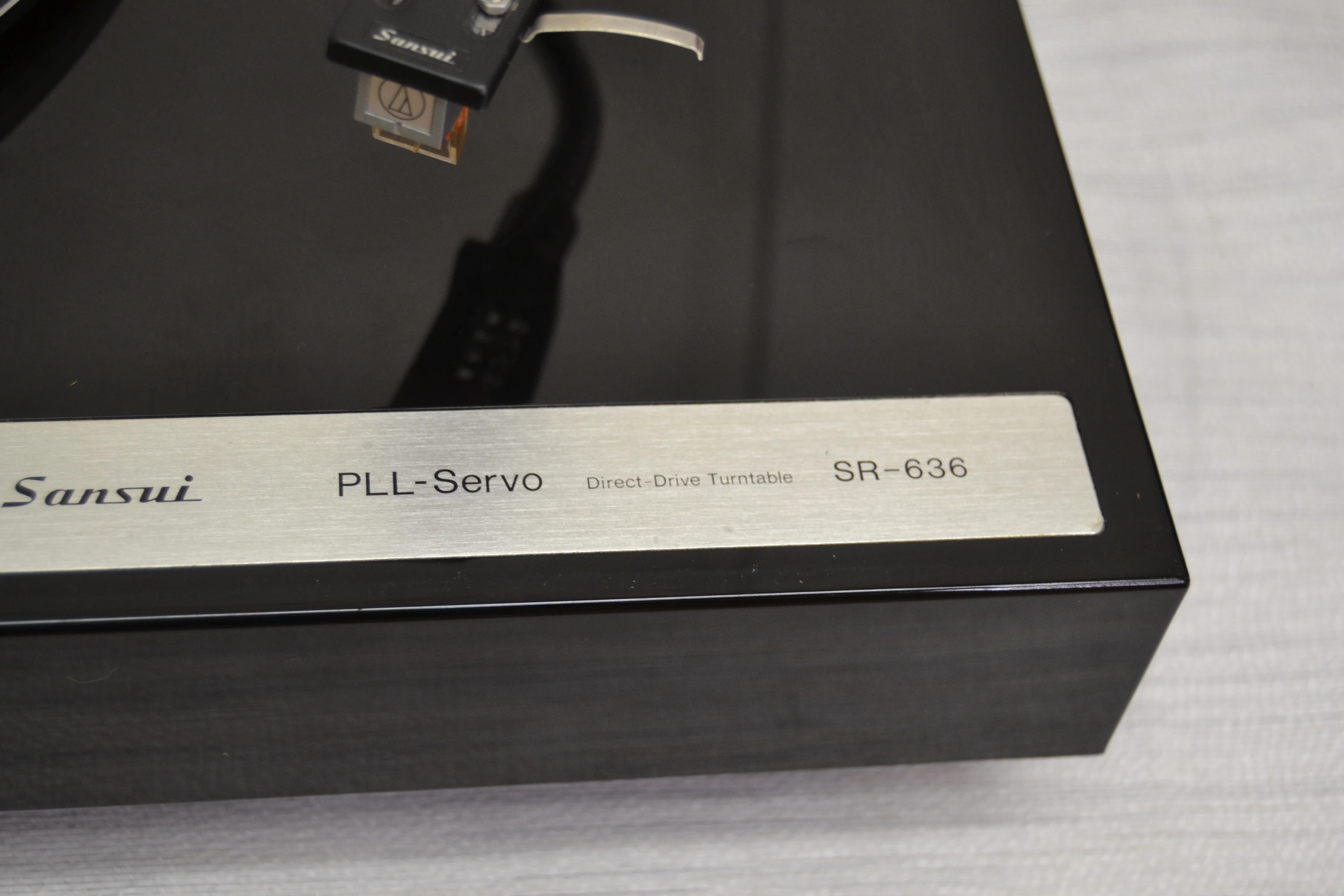

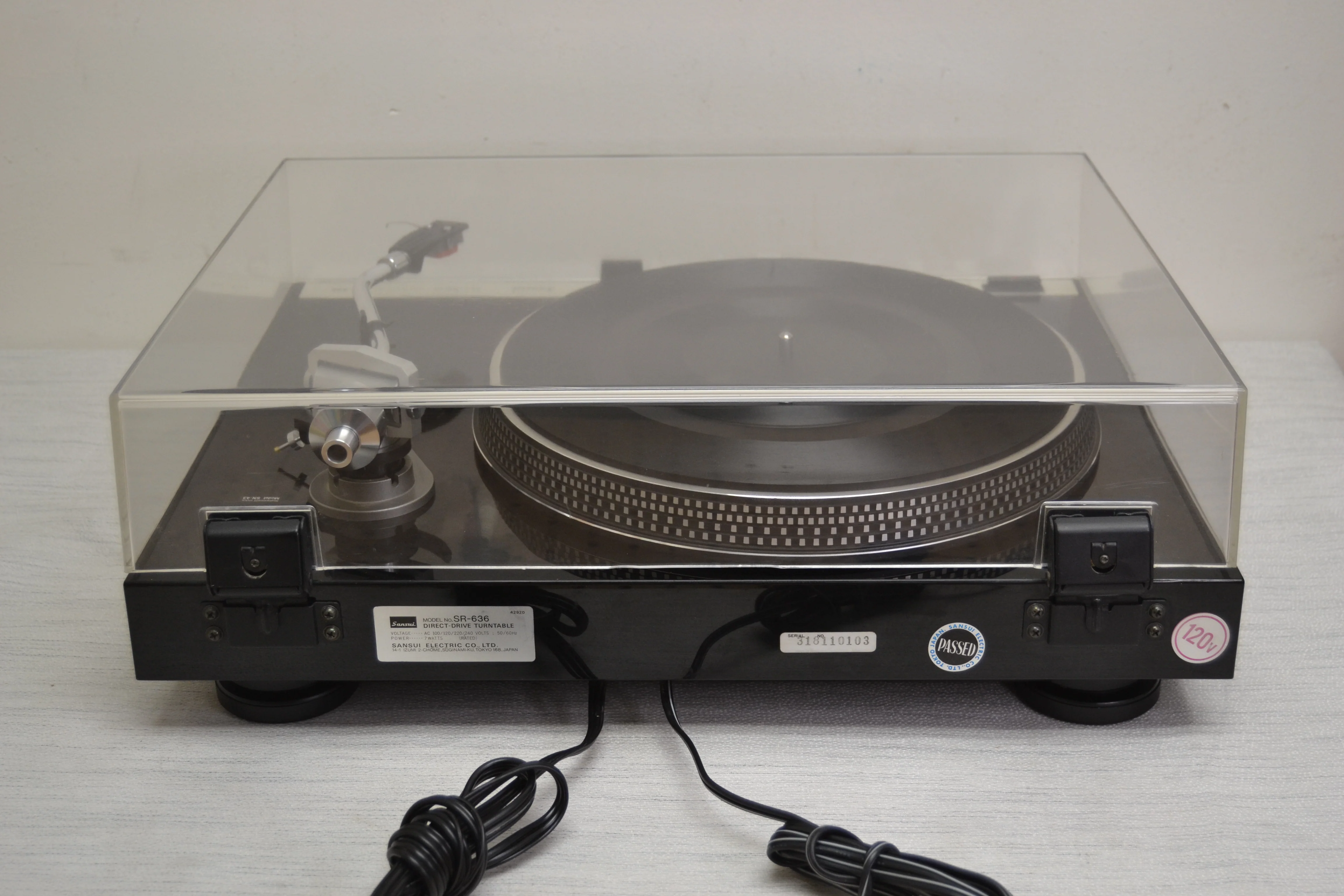

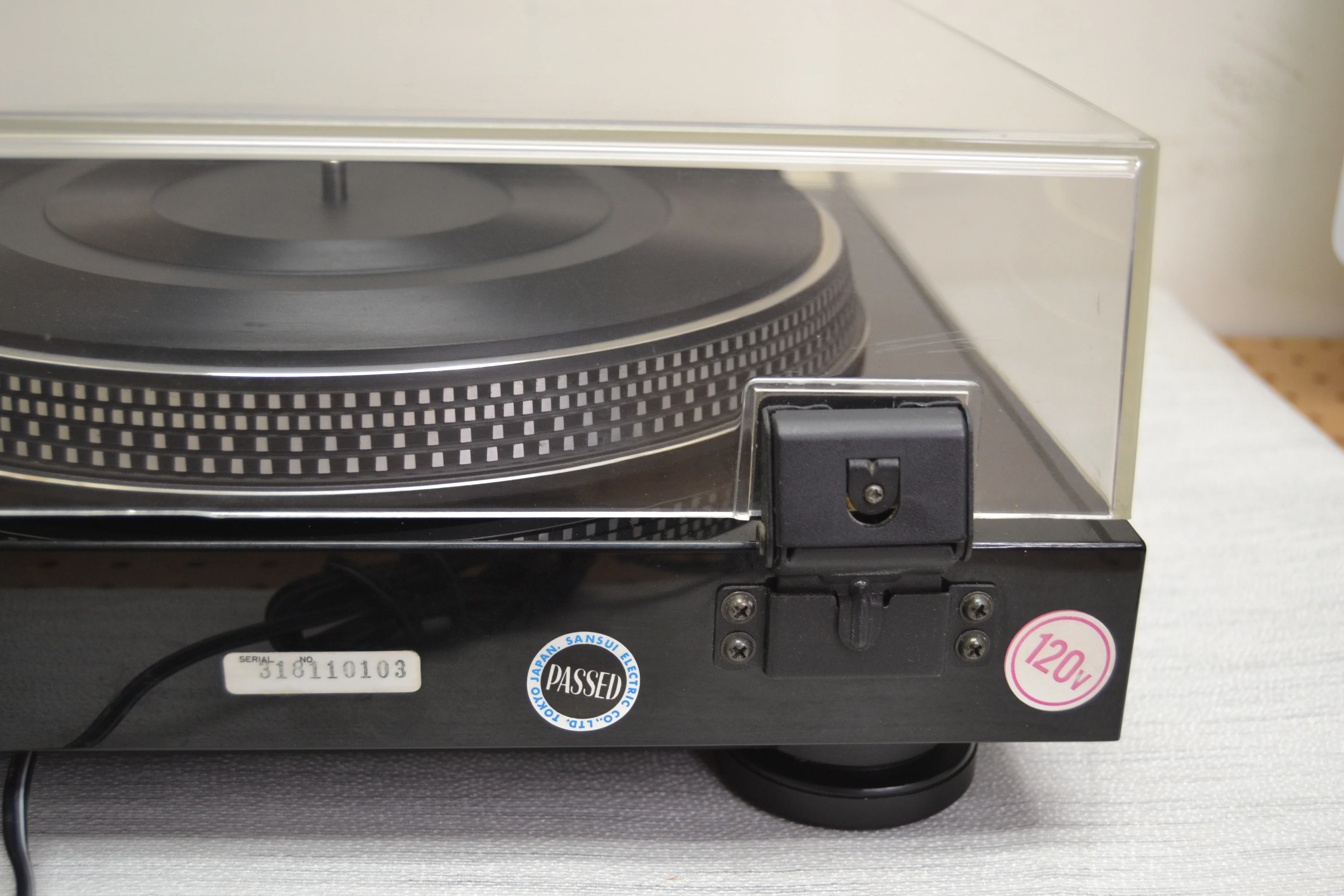

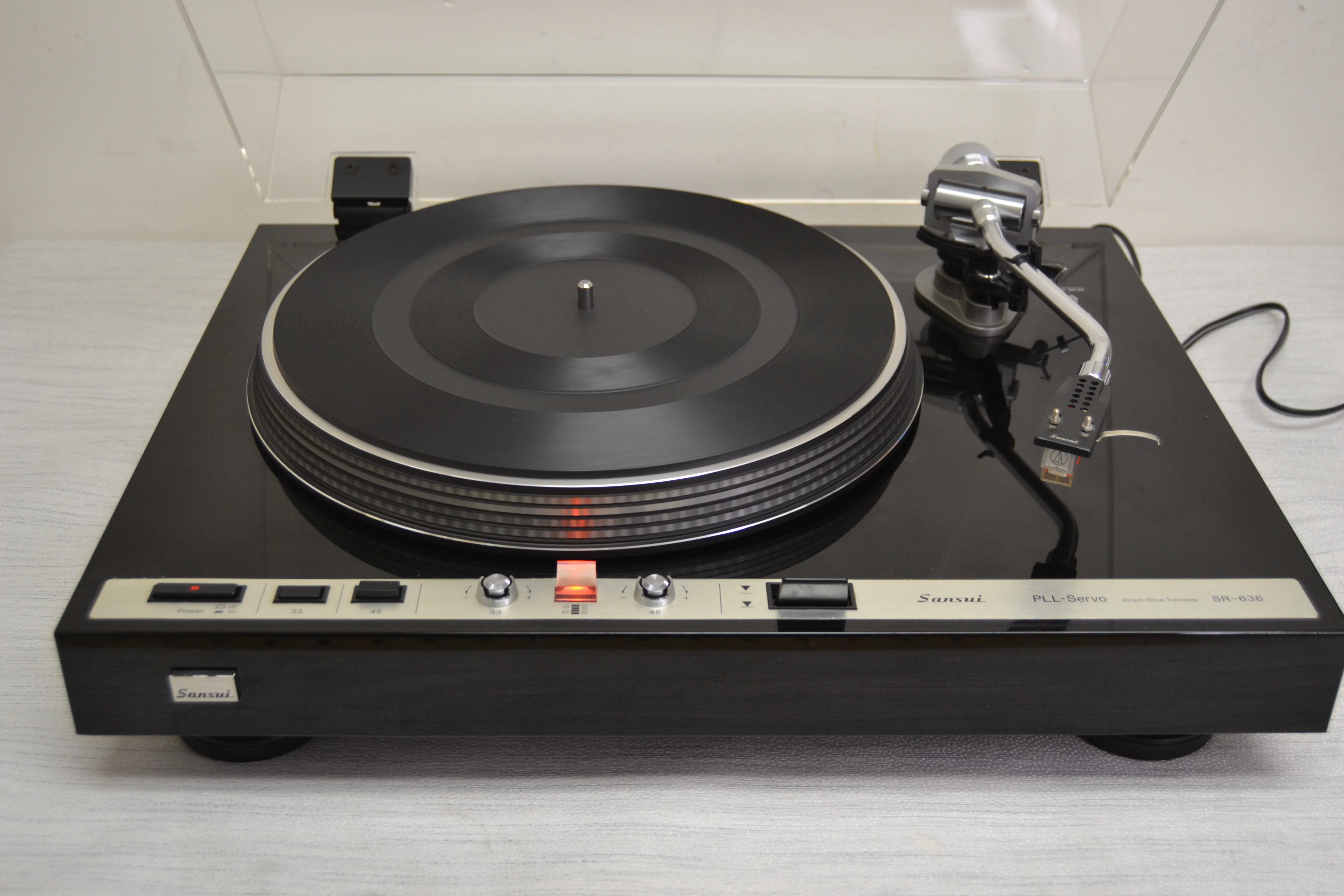

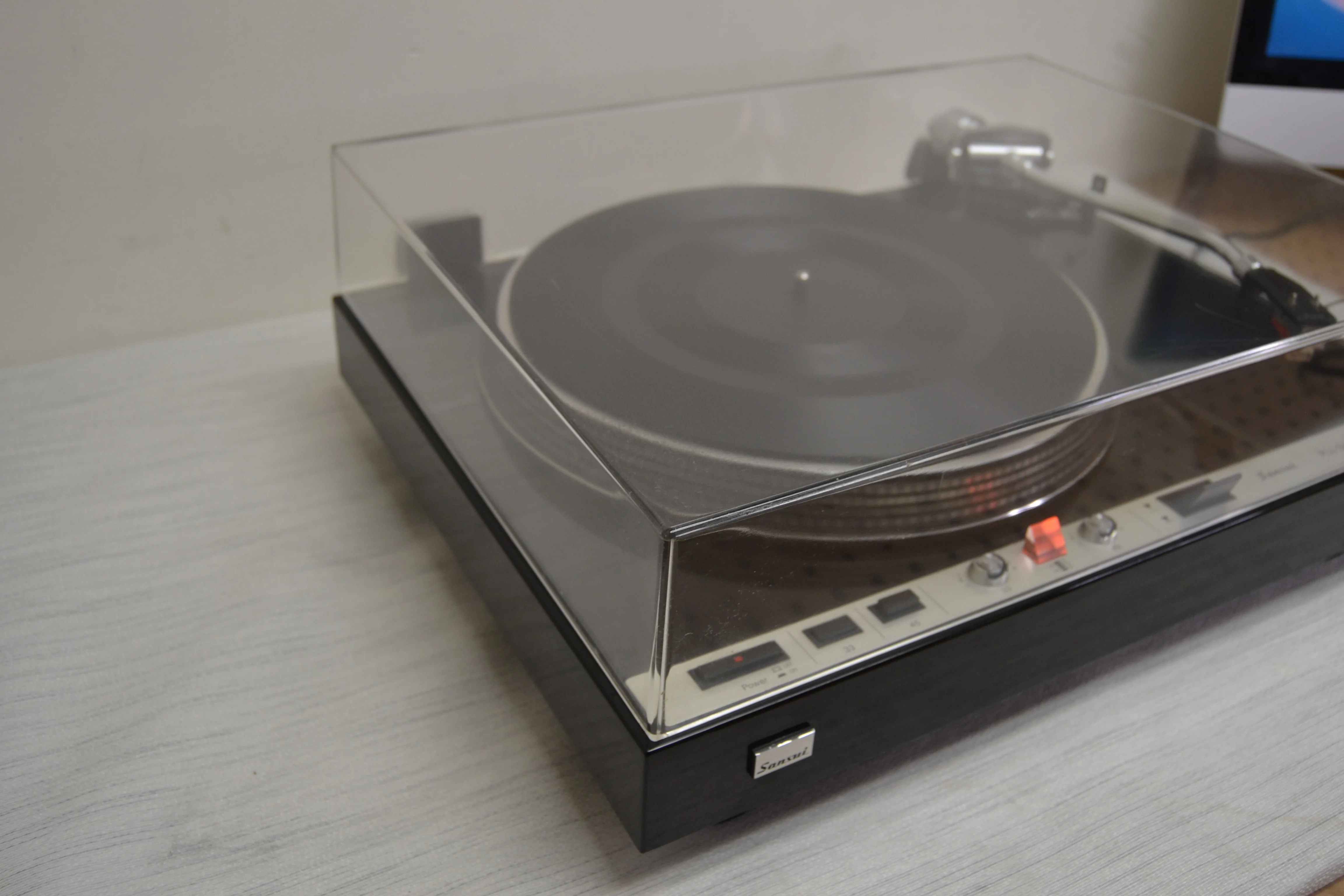

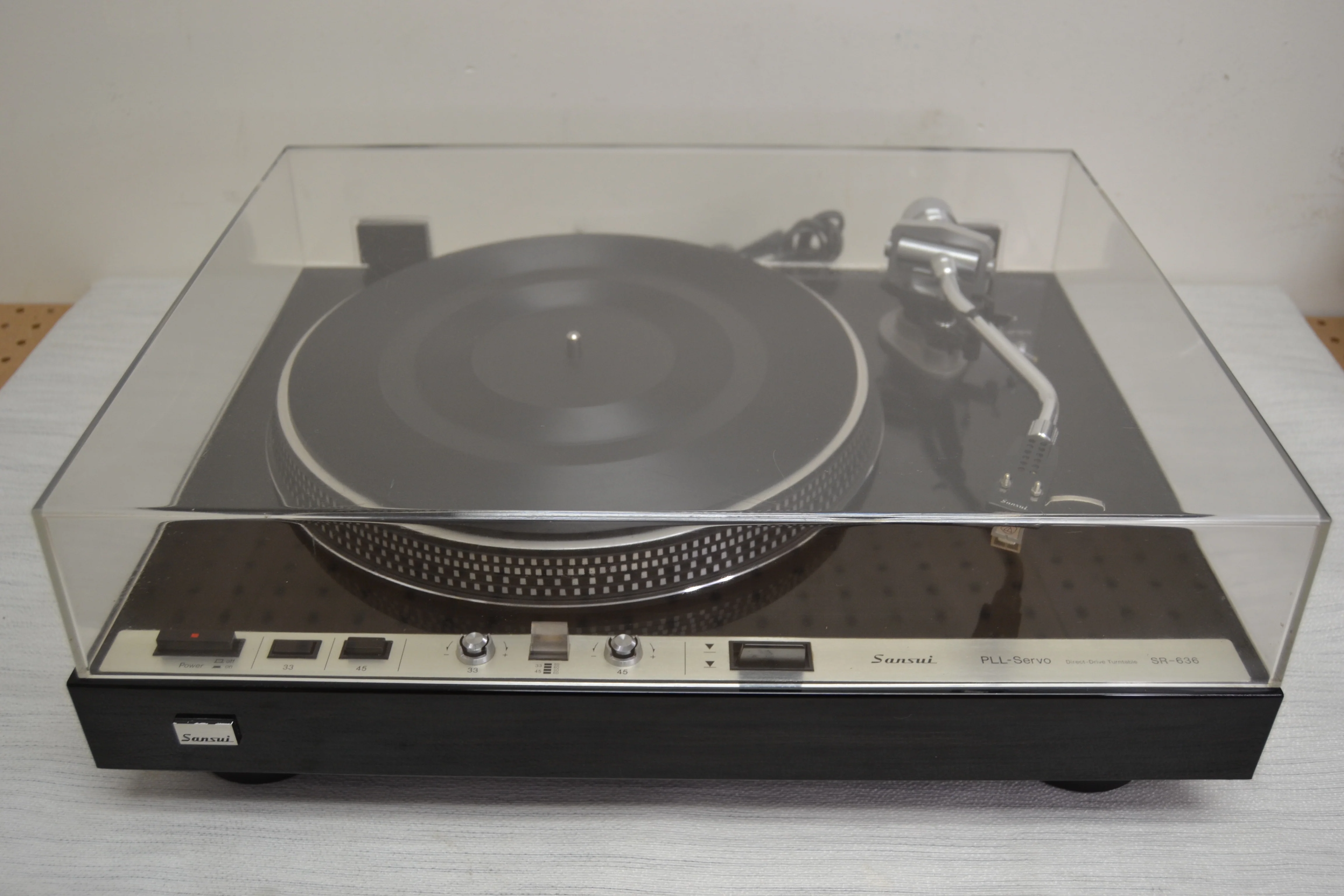

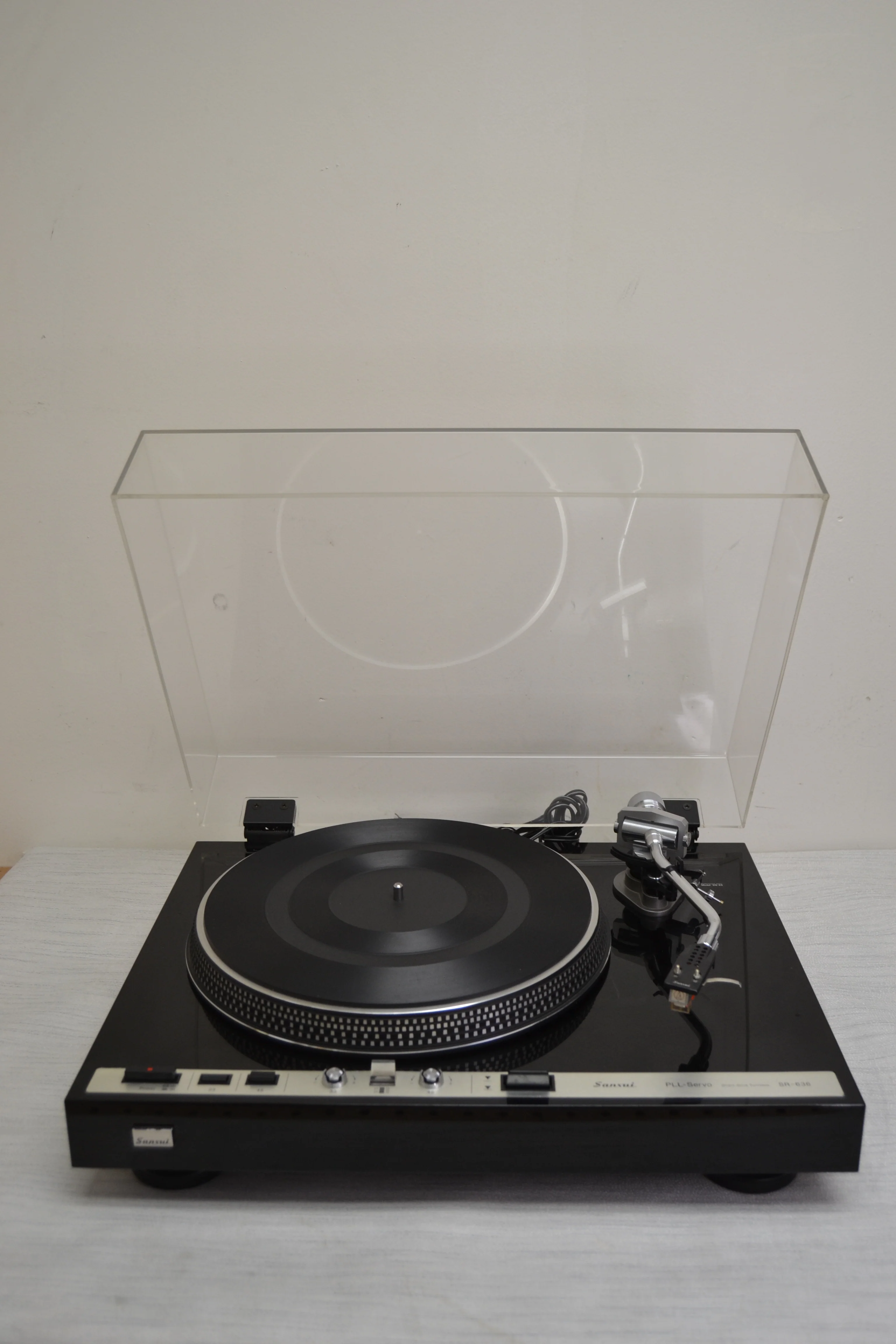

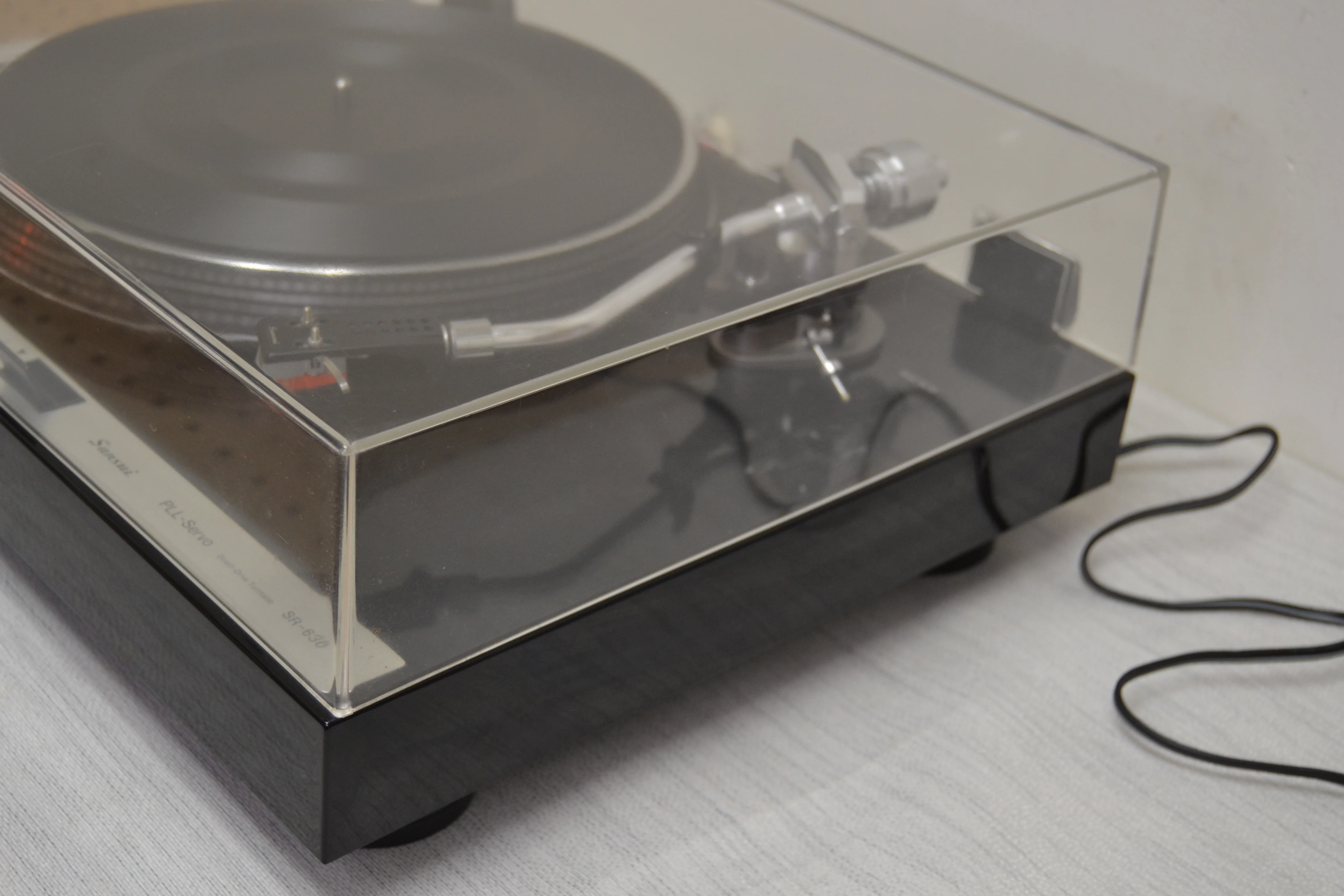

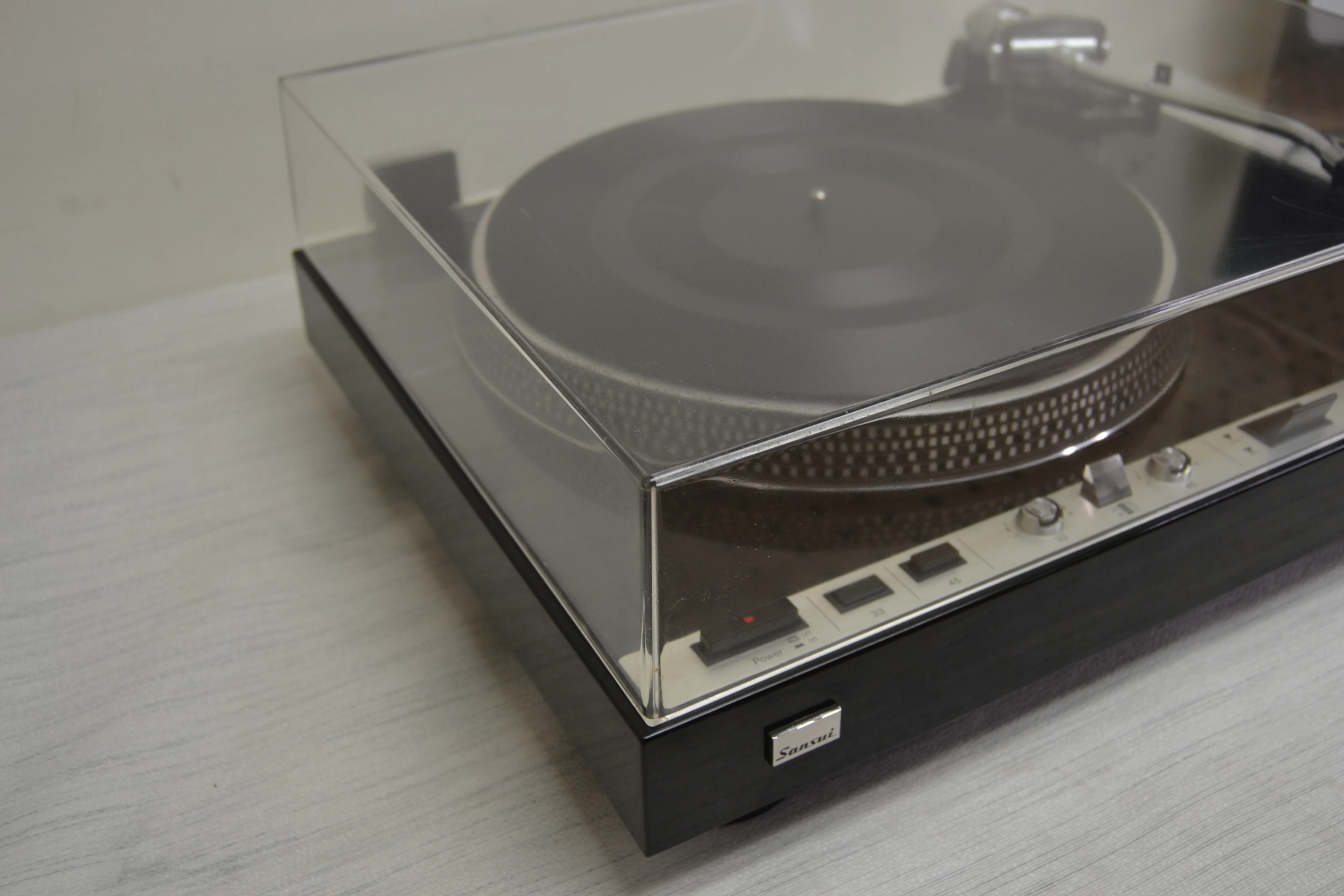

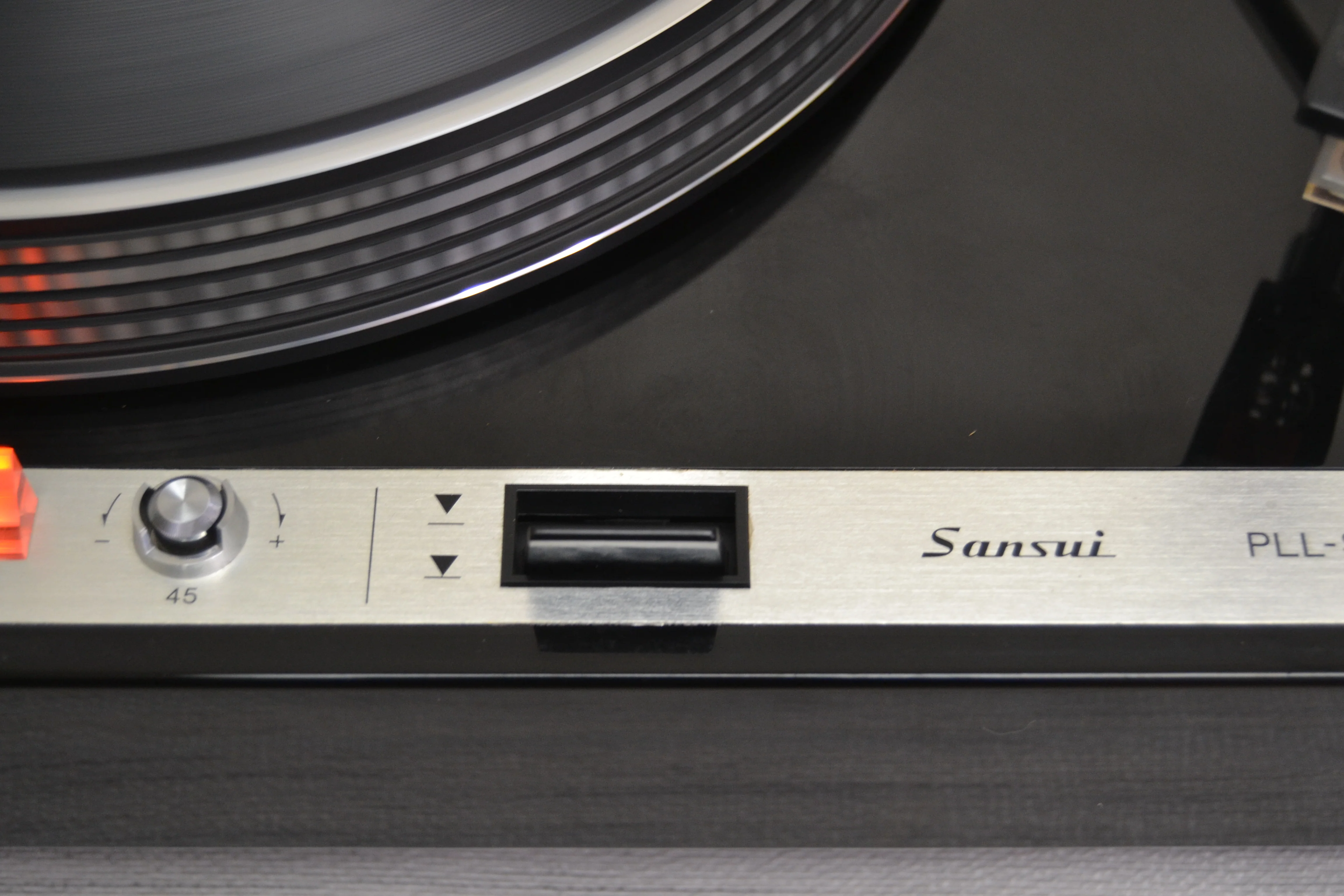

Sansui SR-636

PLL Servo Direct-Drive Manual Turntable

Sansui's luxurious looking SR-636 shares the trim, slim profile and jet black luster of the highest priced manual Quartz Servo SR-838 in the latest line up of turntables from the company that makes 'only hi-fi, everything hi-fi'.

A comparison of the rumble and wow/flutter specifications of the two models, keeping in mind the SR-636 is considerably less expensive, will show the differences to be incredibly small - only one decibel difference in rumble and an entirely inaudible 0.0003% difference in wow/flutter.

Now compare the SR636 on it's own terms with the competition.

Only the SR636 features Sansui's new MCF (mass concentrated fulcrum) tonearm, our super accurate CR oscillator equipped PLL Servo system and direct drive motor, an electronic braking system, complex suspension, anti-howl cabinet, up-front control system and lot's more.

But only when you hear it perform can you be certain that it's the direct drive manual for you.

Specifications

Type: manual turntable

Motor: 20-pole, 30-slot DC brushless type with built-in frequency generator

Drive: direct spindle drive, PLL servo-controlled

Platter: 318mm, 1.6kg, alluminium die-cast

Wow and flutter: less than 0.028% WRMS

Signal to noise ratio: better than 63dB

Rumble: better than -71dB

Speeds: 33 and 45rpm

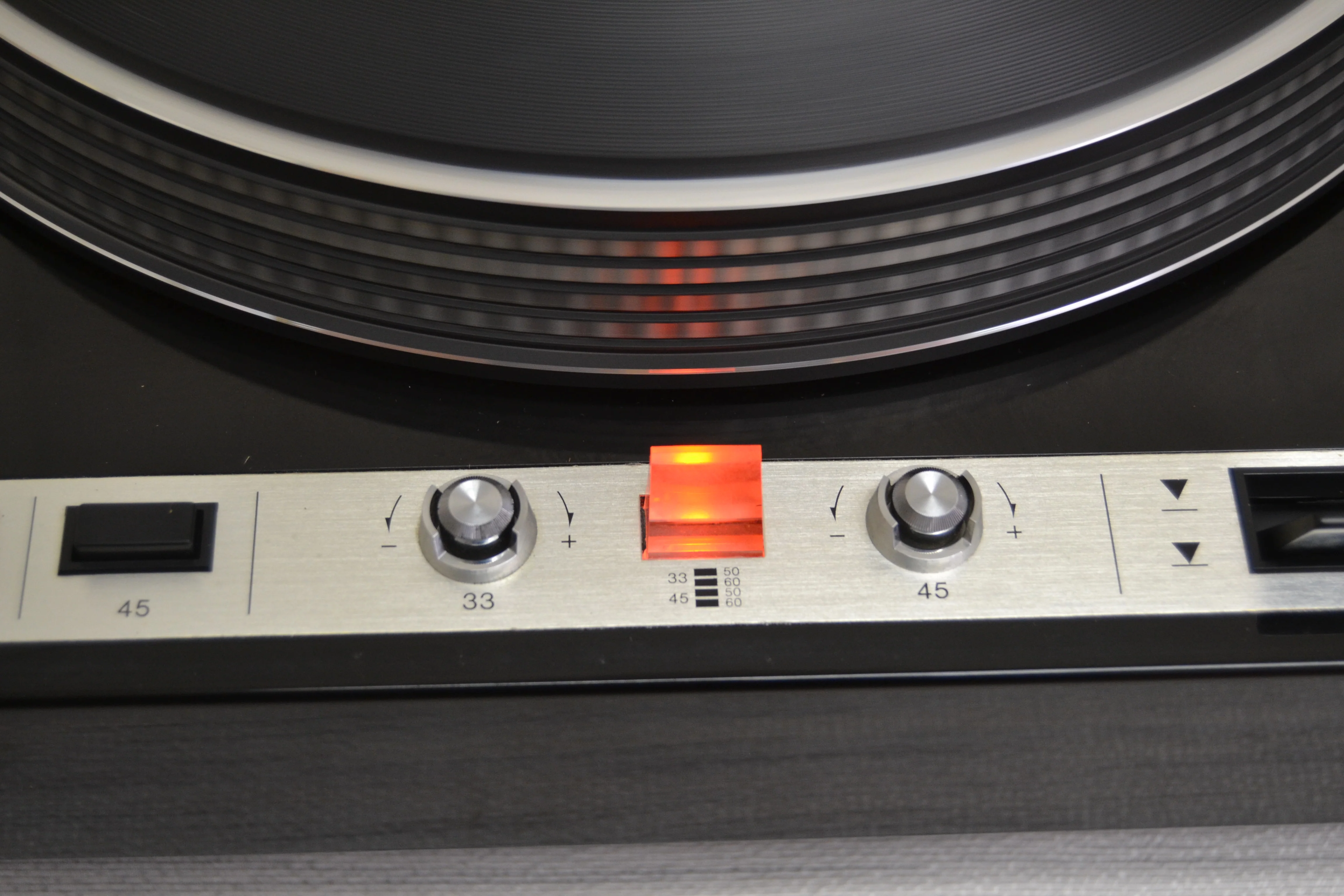

Fine speed adjustment: +-2.5%

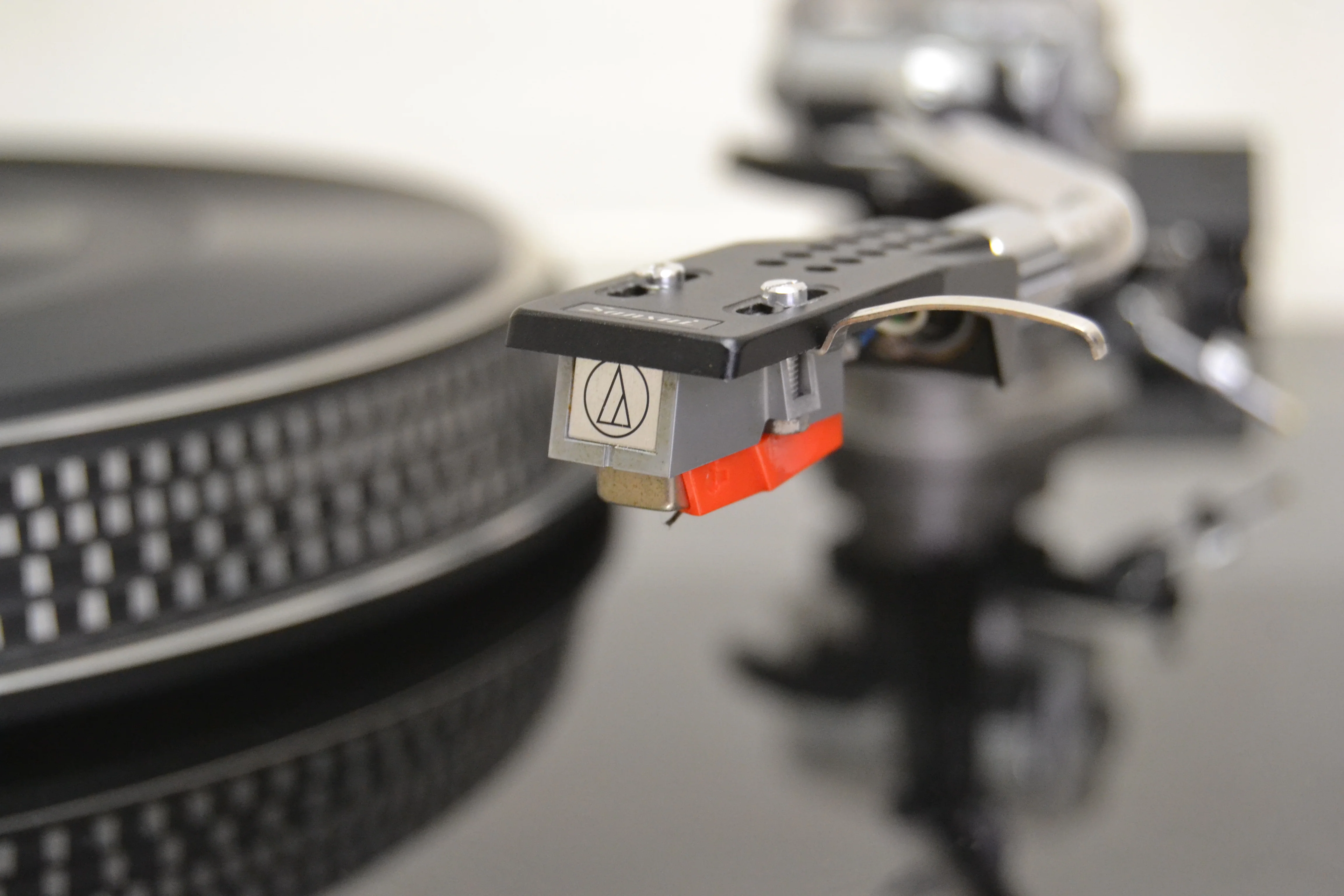

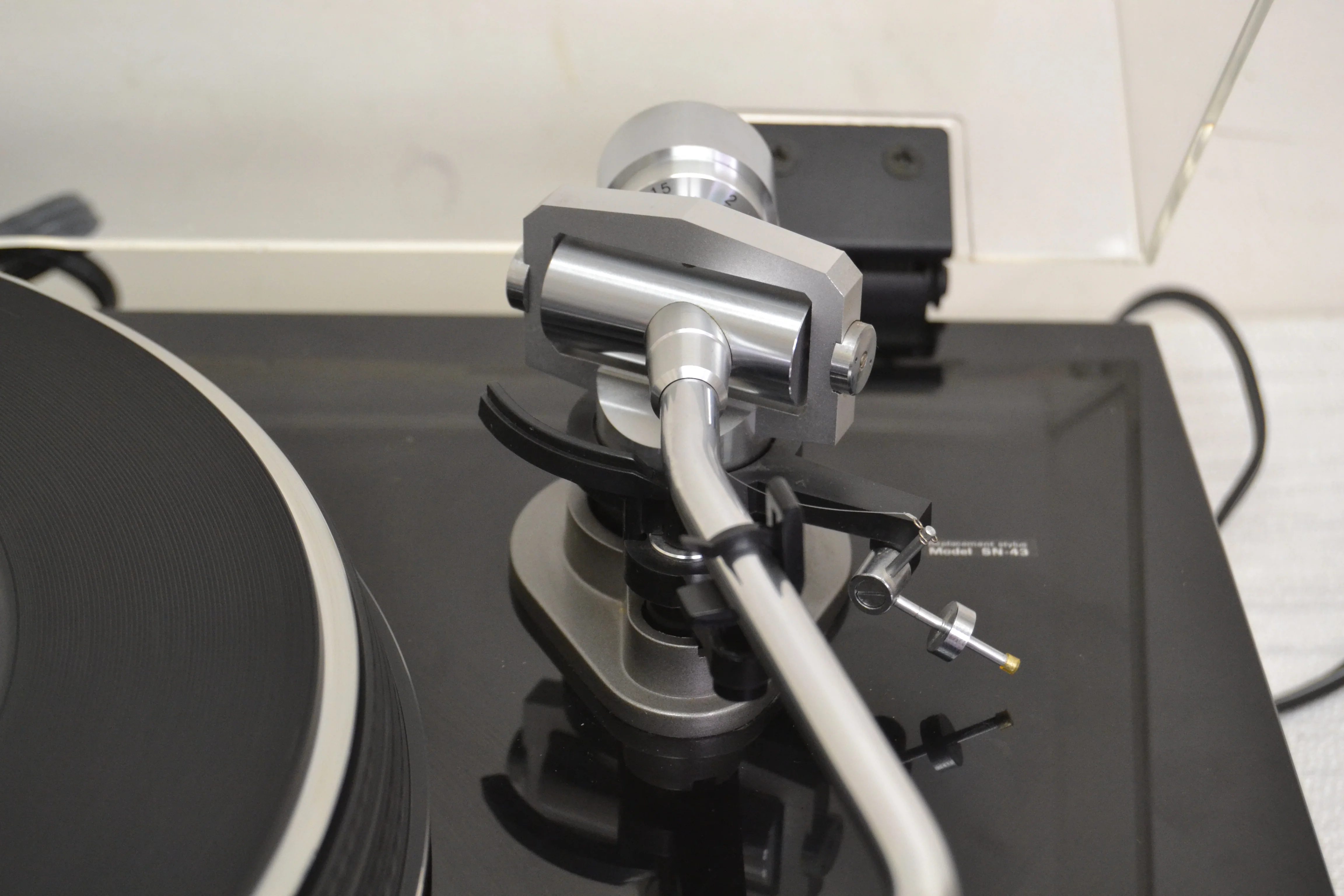

Tonearm: statically balanced, s-shaped, resonance-free MCF tonearm with two point pivot support and vertical stylus alignment device

Effective length: 230mm

Overhang: 16.1mm

Offset angle: 22.5 degrees

Cartridge weight range: 4 to 11g (11 to 20.5g with sub-weight)

Compensation: bias and lateral balance

Cartridge: SV-43 dual magnet type

Dimensions: 490 x 167 x 390mm

Weight: 12.3kg ( 26lb )
