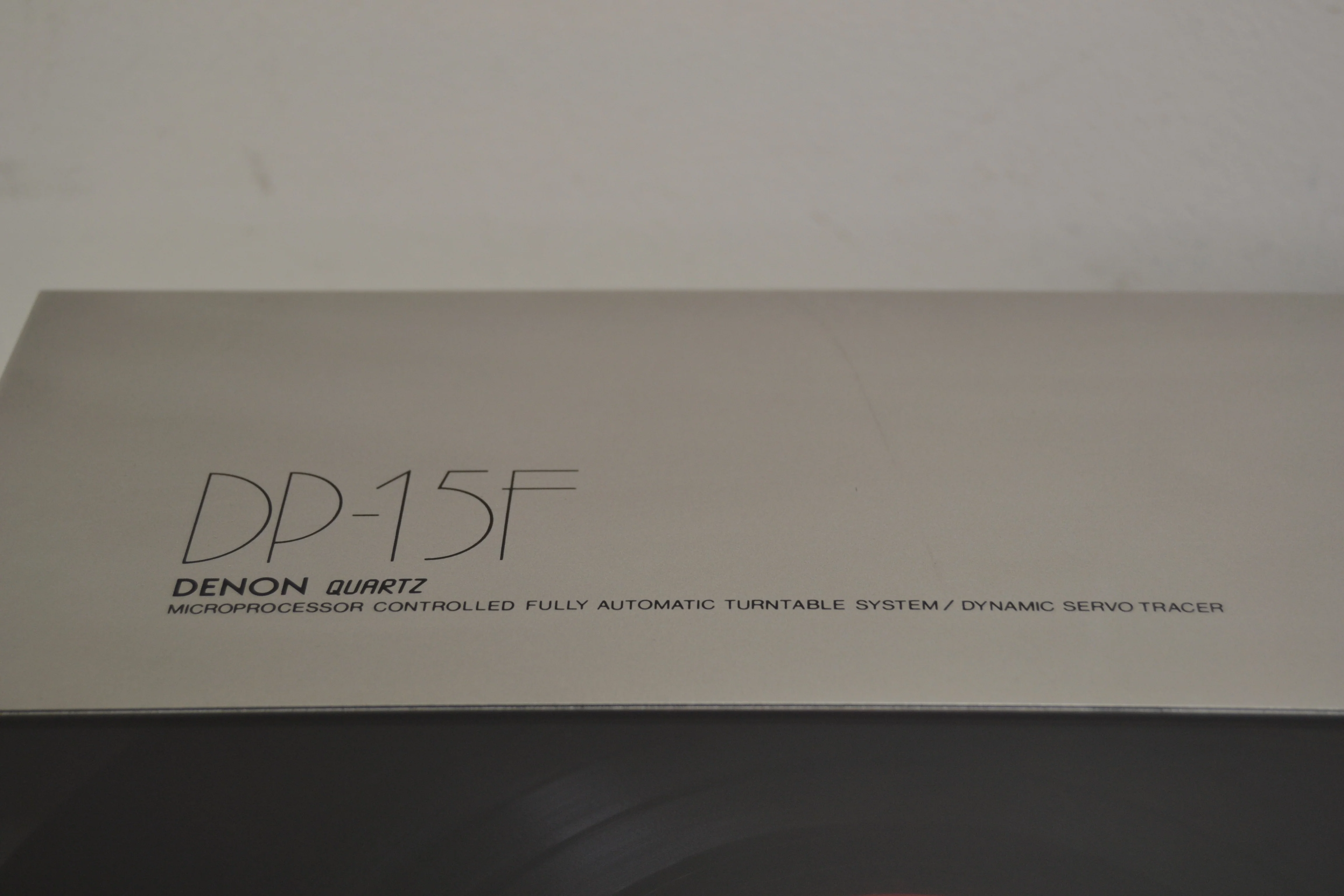

Denon DP-15F

Fully-Automatic Direct-Drive Turntable

Description

The Denon DP-15F is a direct drive turntable with the following features:

Microprocessor controlled, contact-less servo tonearm - this unique system ensures safe, easy to use automatic operation with no deterioration in sound quality.

Dynamic servo tracer - low frequency resonance caused by cartridge compliance and effective tonearm mass is electronically damped both horizontally and vertically to effectively suppress crosstalk and intermodulation distortion.

Low mass straight tonearm - having an outstanding tracing ability, this arm maximises the performance of the high compliance cartridge to the full extent.

Denon quartz - the ultimate in rotational accuracy is realised by the combination of a magnetic pulse detector and a quartz lock.

Newly developed cartridge - the low mass DL-65 with an elliptically shaped stylus minimises tracing distortion and contributes to the clarity of the reproduced sound.

Specifications

Drive system: servo controlled direct drive

Speeds: 33.33 and 45rpm

Wow and flutter: below 0.018% WRMS

Signal to noise ratio: over 78dB

Platter: aluminium diecast 300mm diameter

Motor: linear drive motor

Speed control system: servo by frequency detection, phase servo control

Speed deviation: below 0.01%

Tonearm: dynamically balanced semi-integrated straight arm

Effective length: 220mm

Overhang: 16mm

Automatic mechanism: electronically controlled fully automatic

Tracking force range: 0-3.0g

Cartridge weight range: 4.0-6.0g

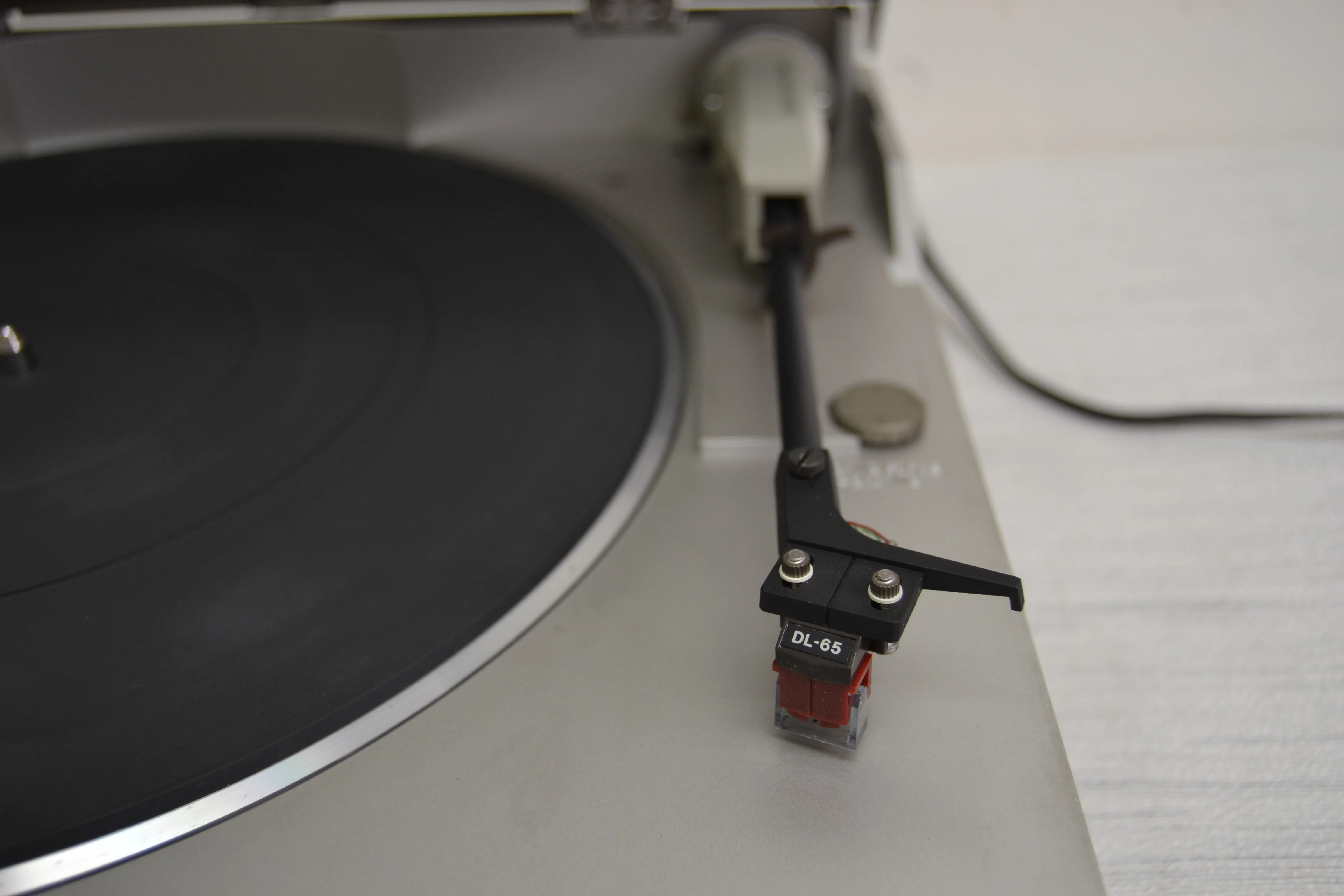

Cartridge: DL-65 moving magnet

Stylus: DNS-65

Tracking force: 1.8g (+-0.3g)
