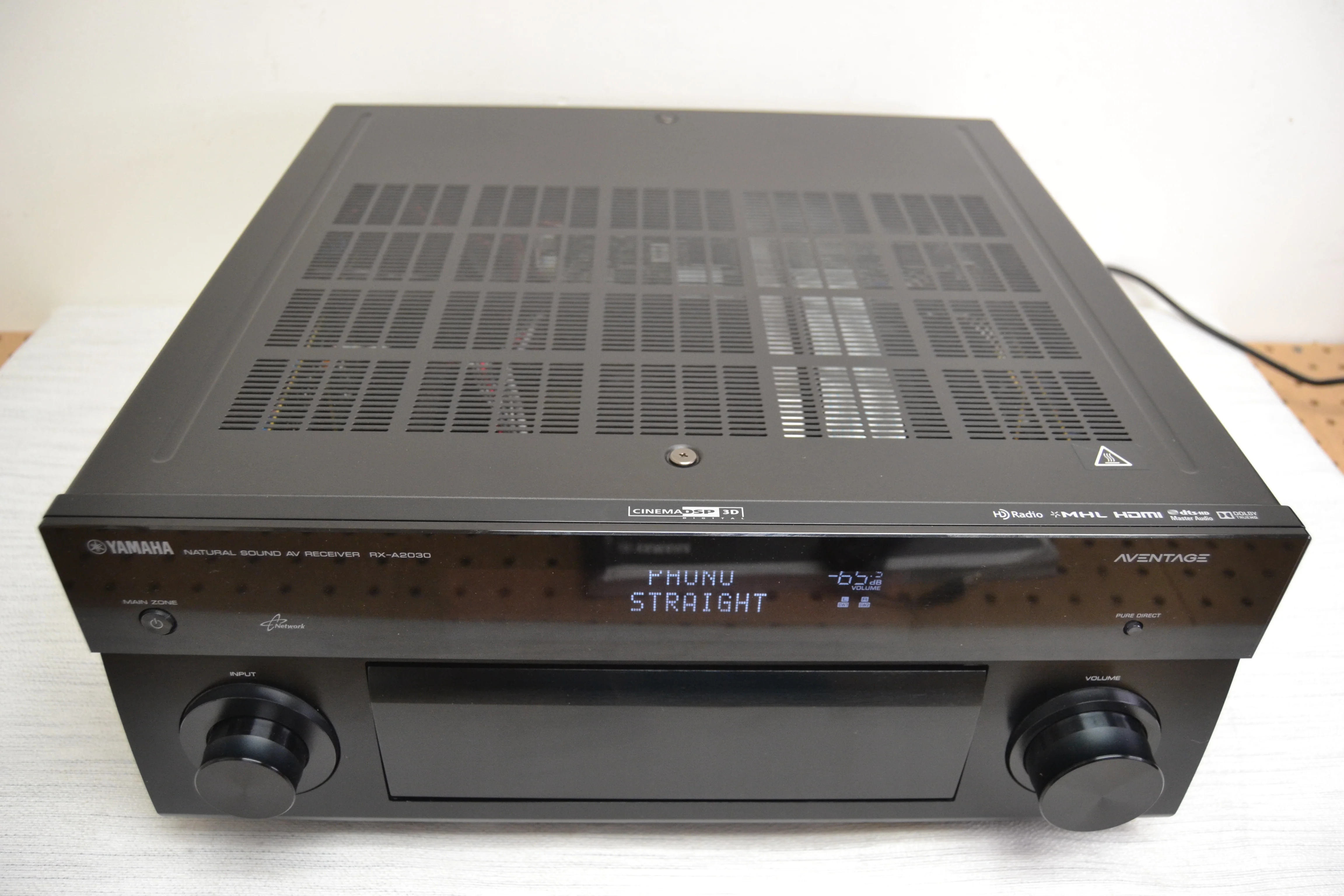

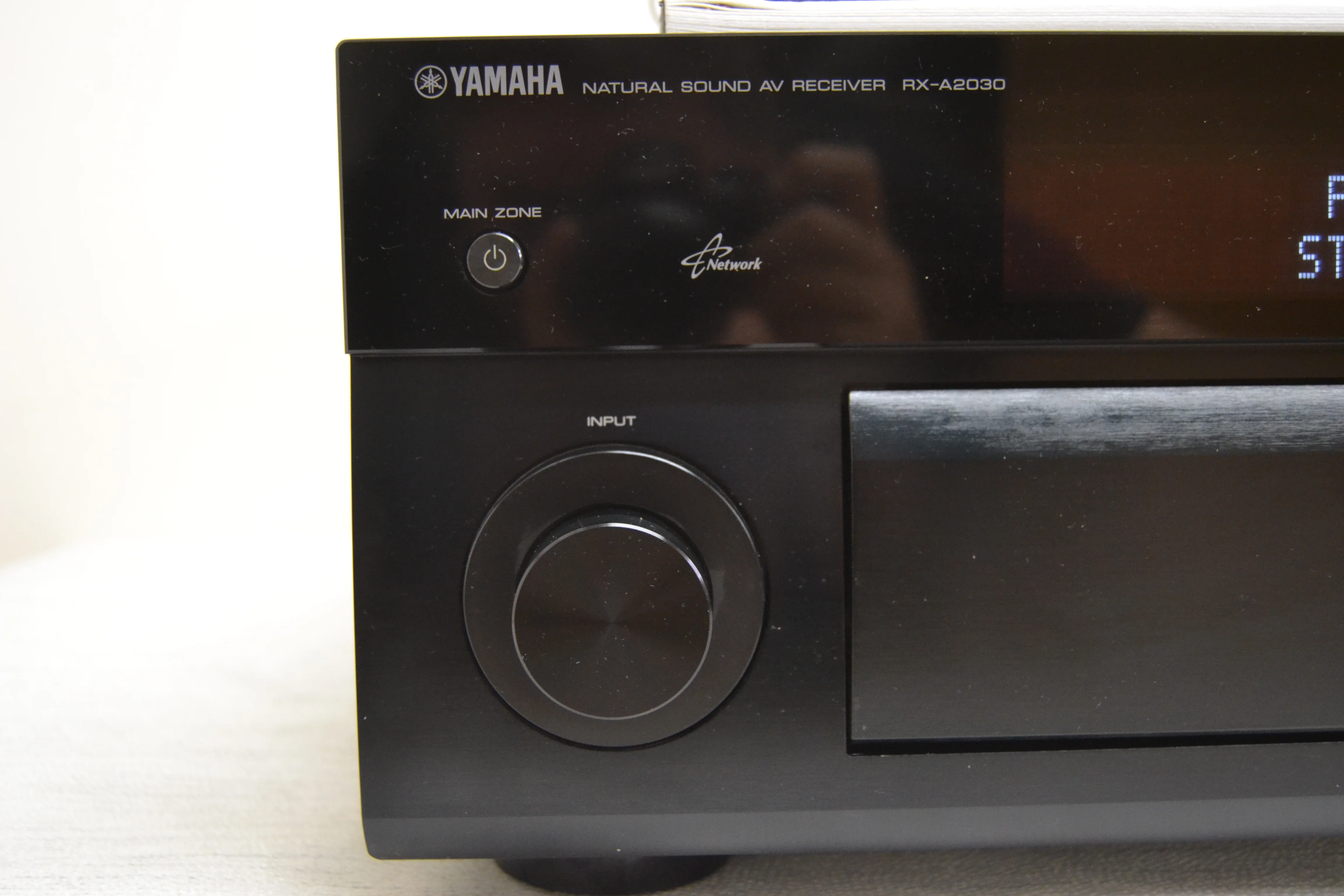

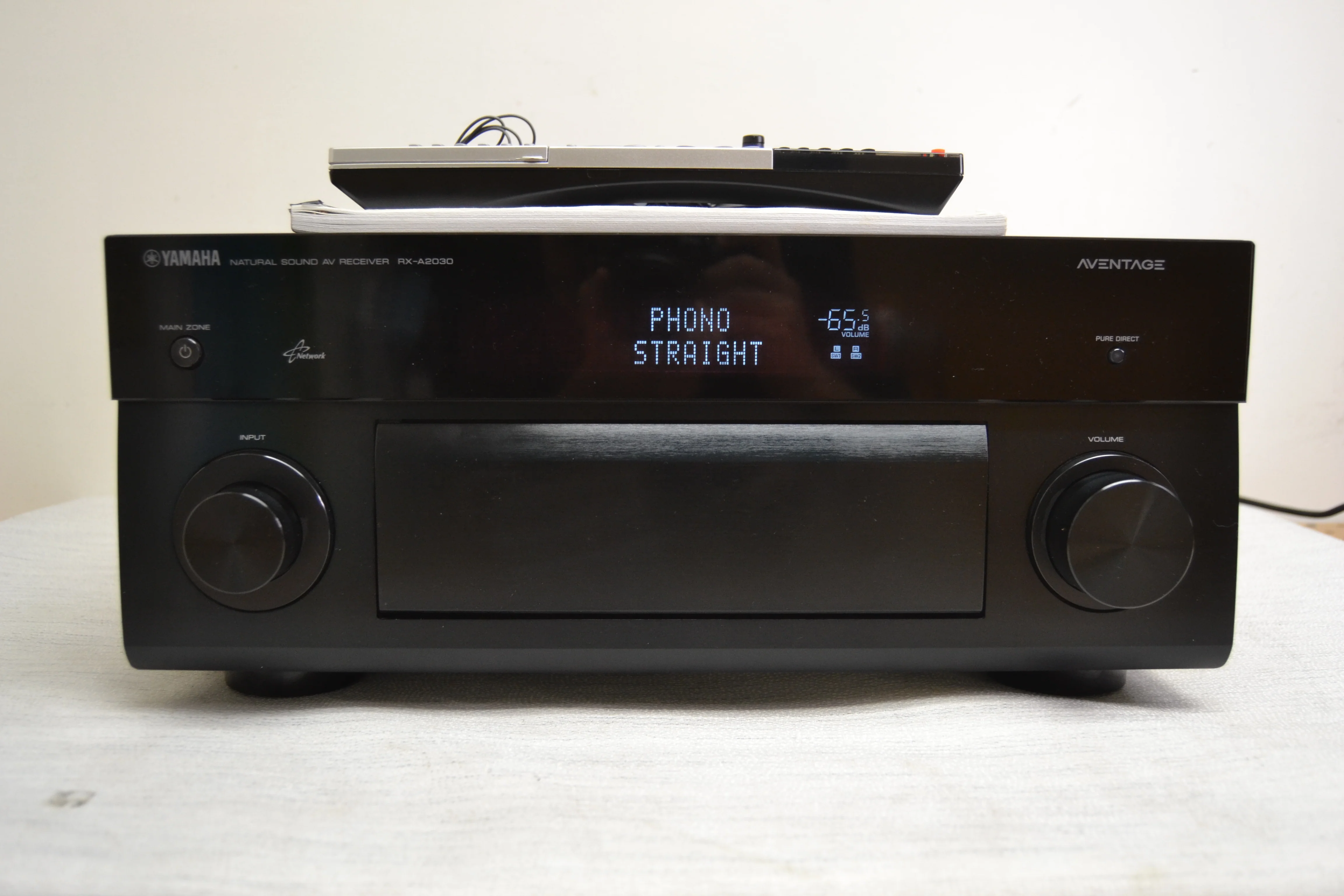

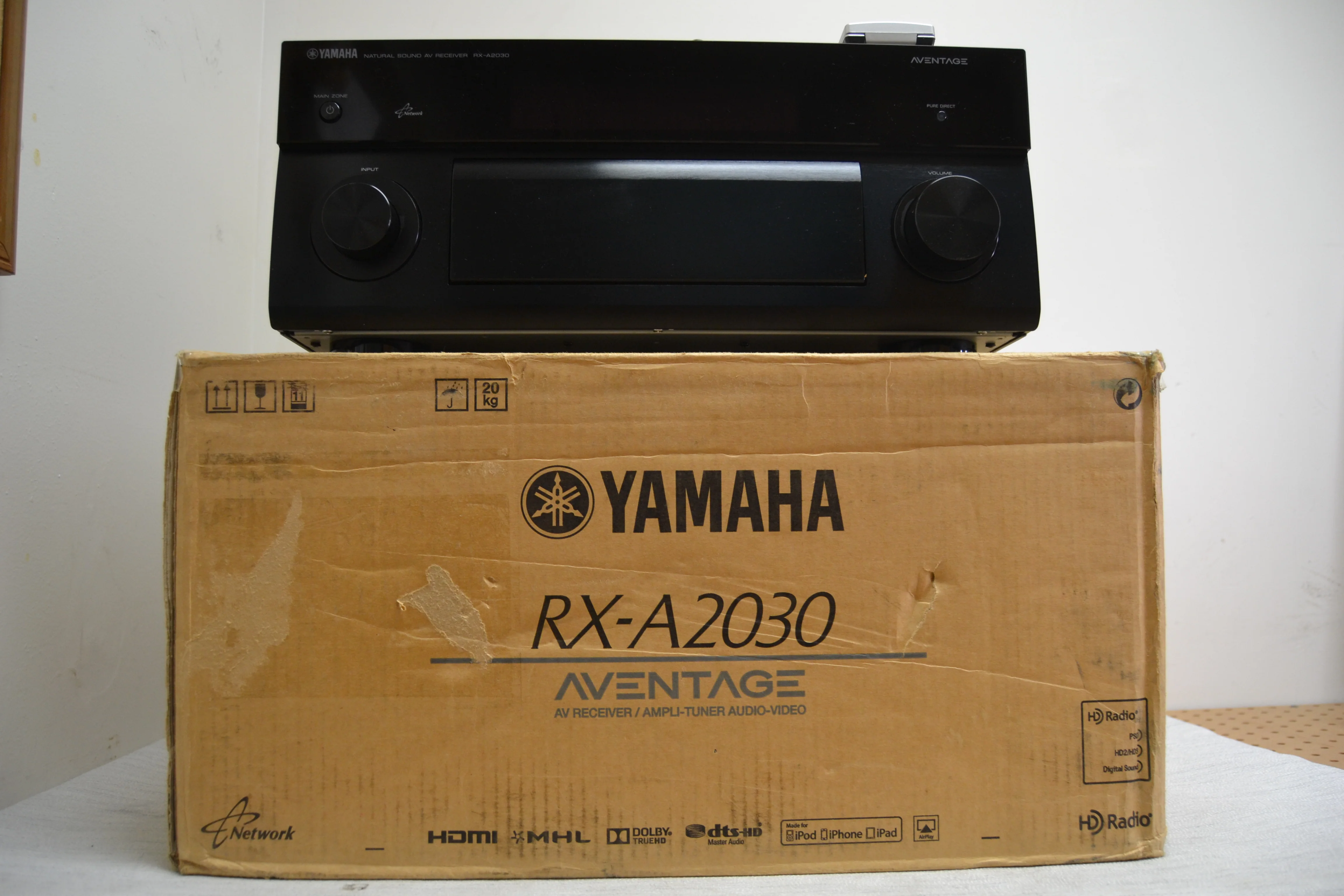

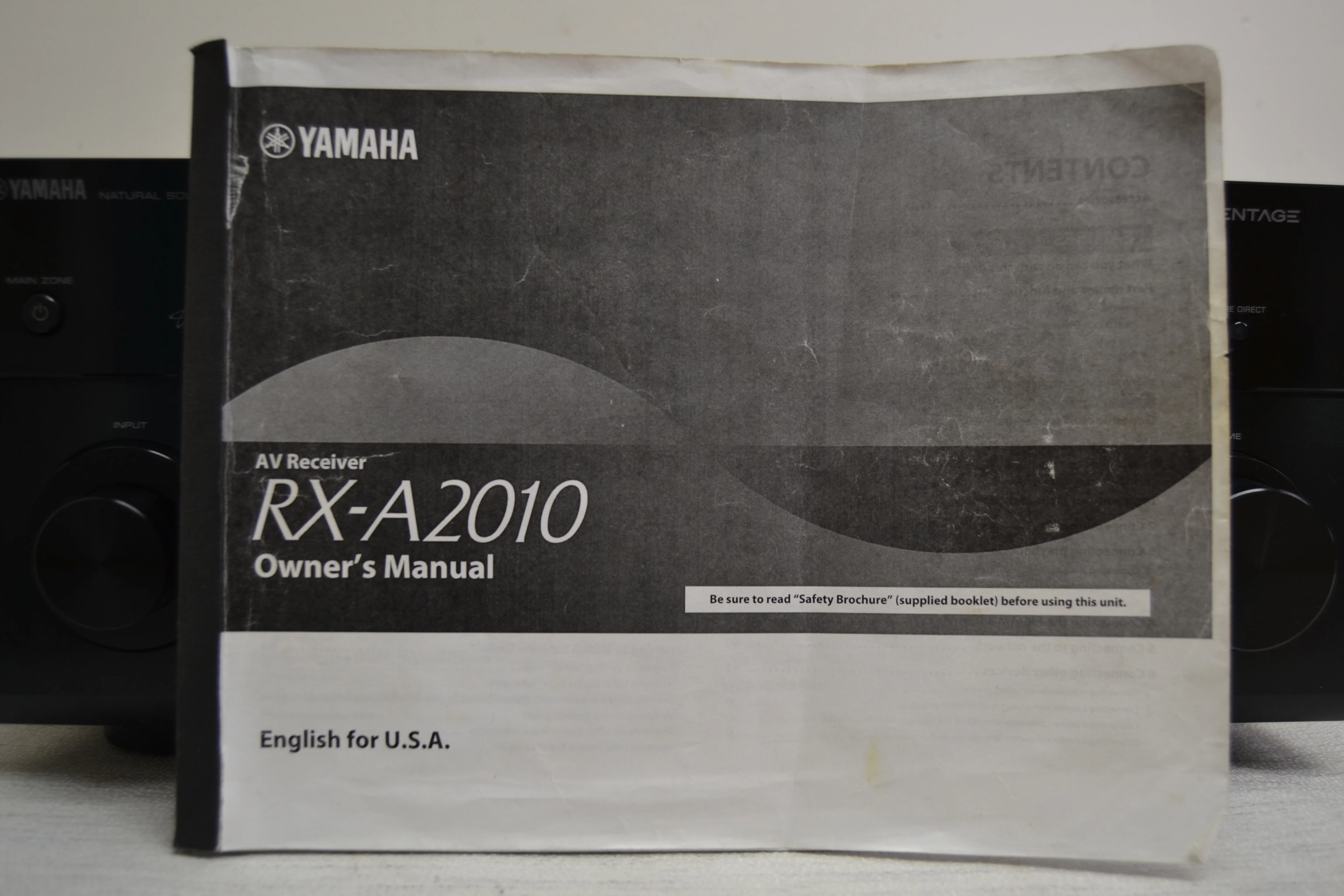

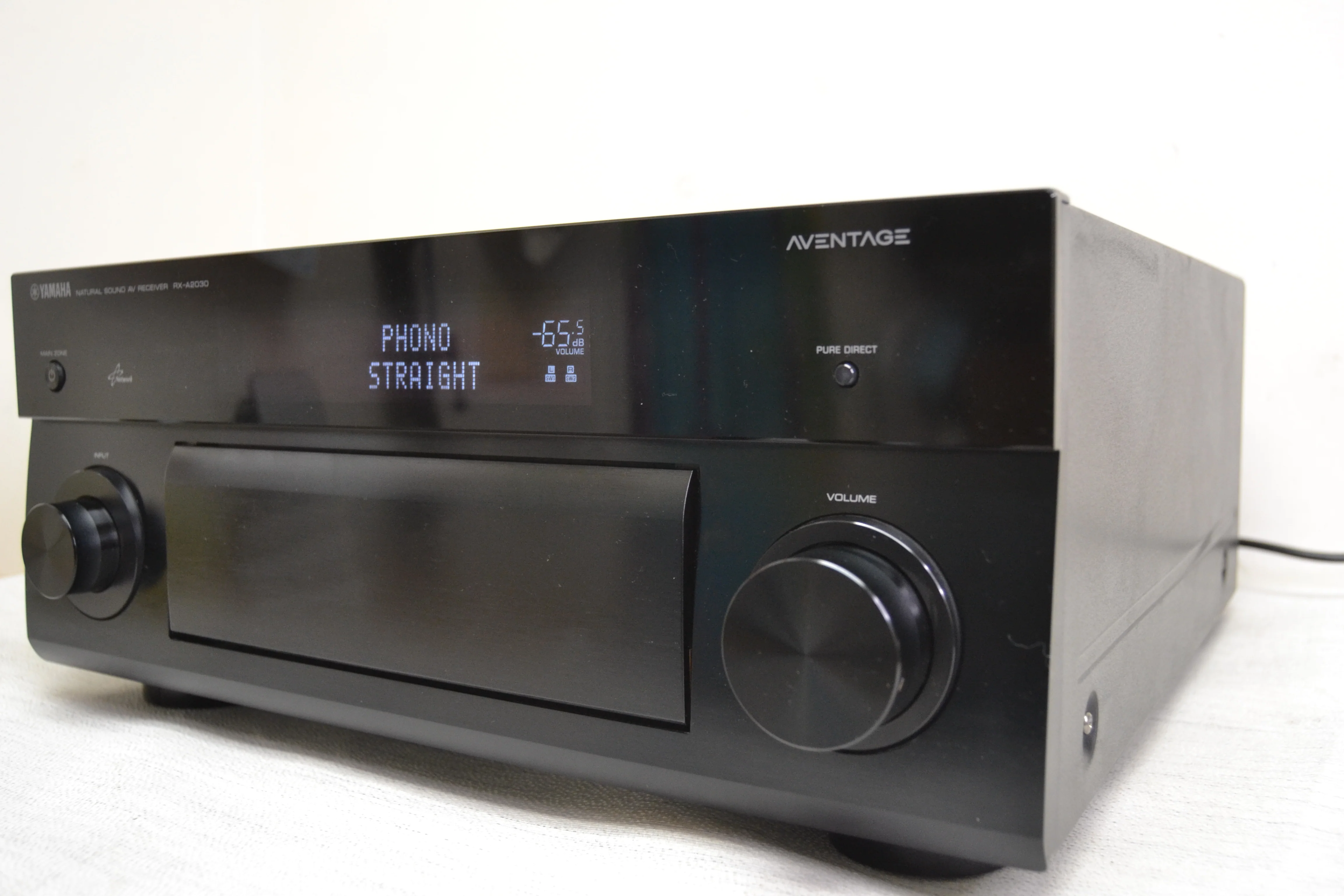

Yamaha RX-A2030 Stereo Receiver * Remote * Box * Manual * Accessories * Fully Serviced

Get the best of Yamaha with AVENTAGE

Take your home theater's sound and picture to new heights — and new places. Yamaha's AVENTAGE receivers bring together top-notch audio and video processing with high-quality construction designed to deliver your movies and music with sonic purity and detail. With 140 watts per channel in stereo mode, 9 channels of amplification, and three-zone capability, 'A2030 has the power and flexibility to drive a robust home theater system that extends into as many as three rooms.

Multi-zone capability reaches into as many as four rooms

Yamaha's Intelligent Amp Assign provides outputs for up to 11 speakers, giving the ‘A2030 multi-room versatility to suit your home and equipment. You can power nine channels at a time with this receiver, or up to 11 when you add a separate stereo power amp or receiver. That means you can enjoy 5.2-channel surround in your home theater, while simultaneously powering stereo speakers in two other rooms.

The additional HDMI output offers lots of multi-zone capabilities that many multi-room receivers don't have. You can output audio or video from any source to Zone 2 via HDMI. Plus, Zone 2 HDMI switching means you can watch different content from different sources at the same time. Watch a Blu-ray disc in your main room while the kids watch their favorite show in another room. Or use the second HDMI output to send audio and video to an HDTV in a fourth room, while the receiver powers speakers in three other rooms.

Designed with your ears in mind

Yamaha goes the extra mile for excellent sound in its AVENTAGE receivers. The RX-A2030 uses dual audiophile-grade ESS SABRE digital-to-analog converters, which decode the latest high-resolution audio formats with accuracy and detail. Your digital sources like Blu-ray discs and lossless music files will sparkle with definition and life in stereo and surround sound. Independent power supplies for analog and digital circuitry help prevent interference between the two, for purer audio signals. And the symmetrical power amp layout isolates the circuitry for the left and right channels, for a high signal-to-noise ratio and a wide soundstage for stereo music listening.

Apple AirPlay and other streaming music options

When you connect the 'A2030 to your home network, you'll open up a whole world of digital music. With built-in support for Apple AirPlay, you can send music from your iPhone®, iPad®, or computer running iTunes® directly to your receiver for playback. If you subscribe to Spotify® or Rhapsody®, you'll enjoy support for their massive song libraries as well. Plus you can stream music from Pandora® or tap into thousands of free radio stations worldwide via vTuner. Yamaha's Compressed Music Enhancer helps give MP3s and other digital music more depth and detail, as well as upconverting CDs and lossless FLAC files for high-resolution playback. AirPlay requires a wireless home network and a wired connection between the receiver and network or a wireless connection using the optional Yamaha Wi-Fi adapter.

A sight for sore eyes

If it's been a while since you last bought a receiver, then the 'A2030's setup and control features will be a welcome improvement. The on-screen guide is full-color with lots of graphics for easy navigation — a far cry from the bare-bones black-and-white menu screens of just a few years ago. Plus, the free Yamaha A/V Controller app provides sophisticated touchscreen control over a wide range of functions from your Apple® smartphone or tablet, Kindle Fire™, or other Android™ device.

4K, 3D, and MHL®-ready

The RX-A2030 is prepared to take on the latest and greatest digital sources. The front-panel HDMI input is MHL-compatible. That means you can connect your MHL-compatible Android tablet or smartphone to send music and HD video through your receiver for playback on your home theater system. Plus, the 'A2030 supports 3D and 4K pass-through, so it can handle today's 3D Blu-ray players and as well as upcoming Ultra HD content as it arrives.

Highlights:

Power and Processing:

• 9-channel amplifier
• 140 watts per channel into 8 ohms (20-20,000 Hz) at 0.06% THD, with 2 channels driven
• Dolby® and DTS® surround sound decoding
• analog-to-HDMI video upconversion (up to 1080p and 4K)
• Yamaha's advanced video processing with edge and motion adaptive deinterlacing for sharp images and smooth motion

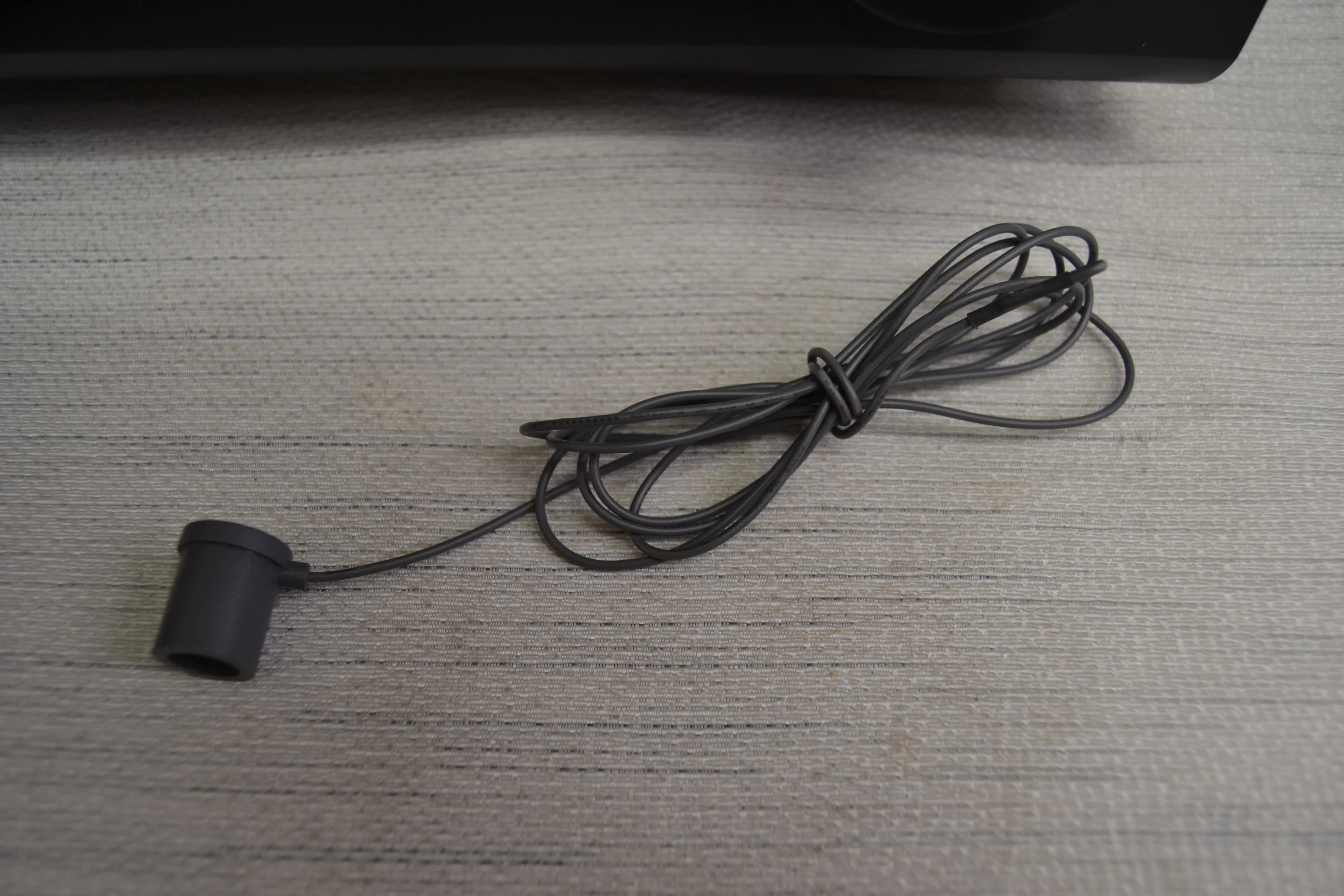

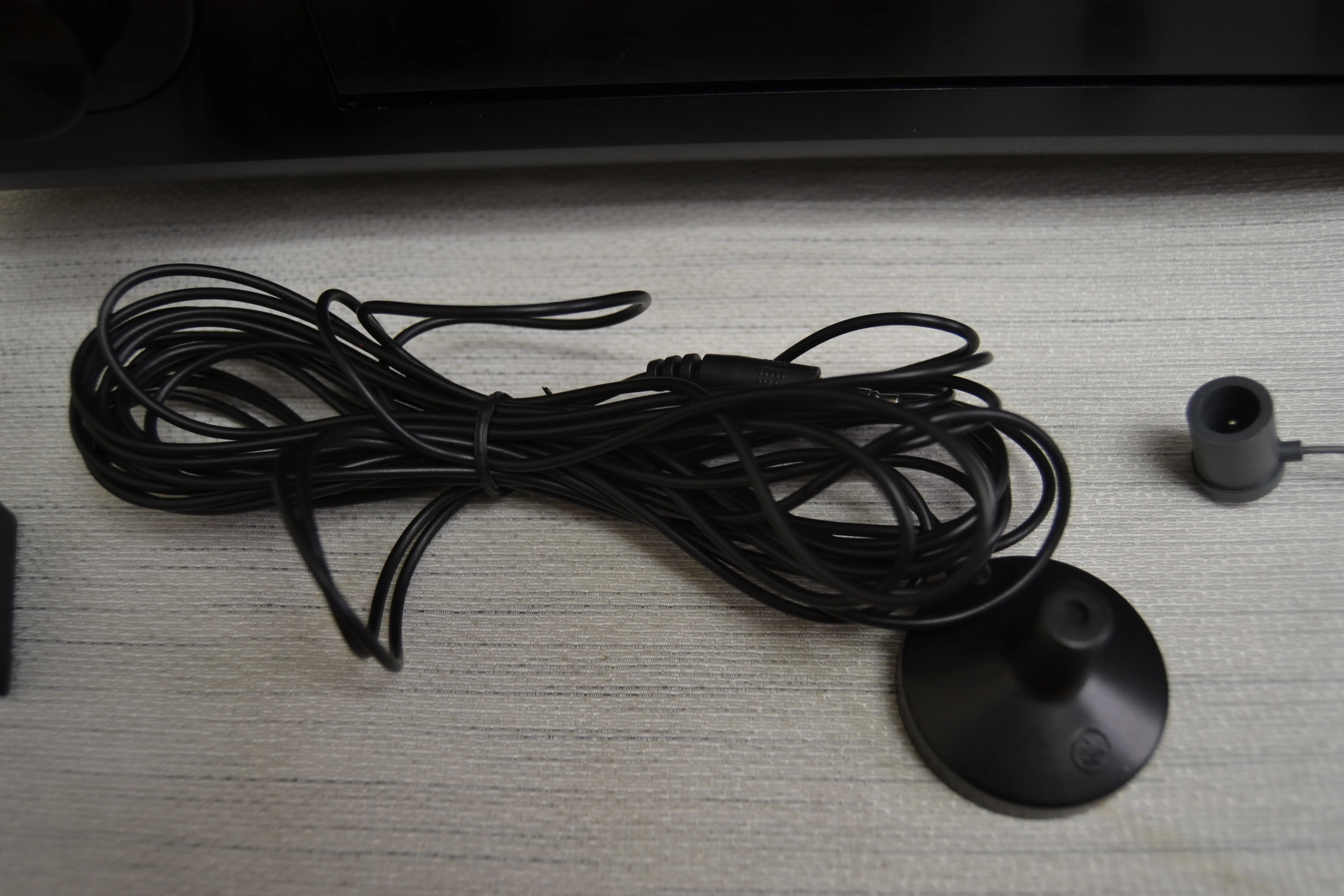

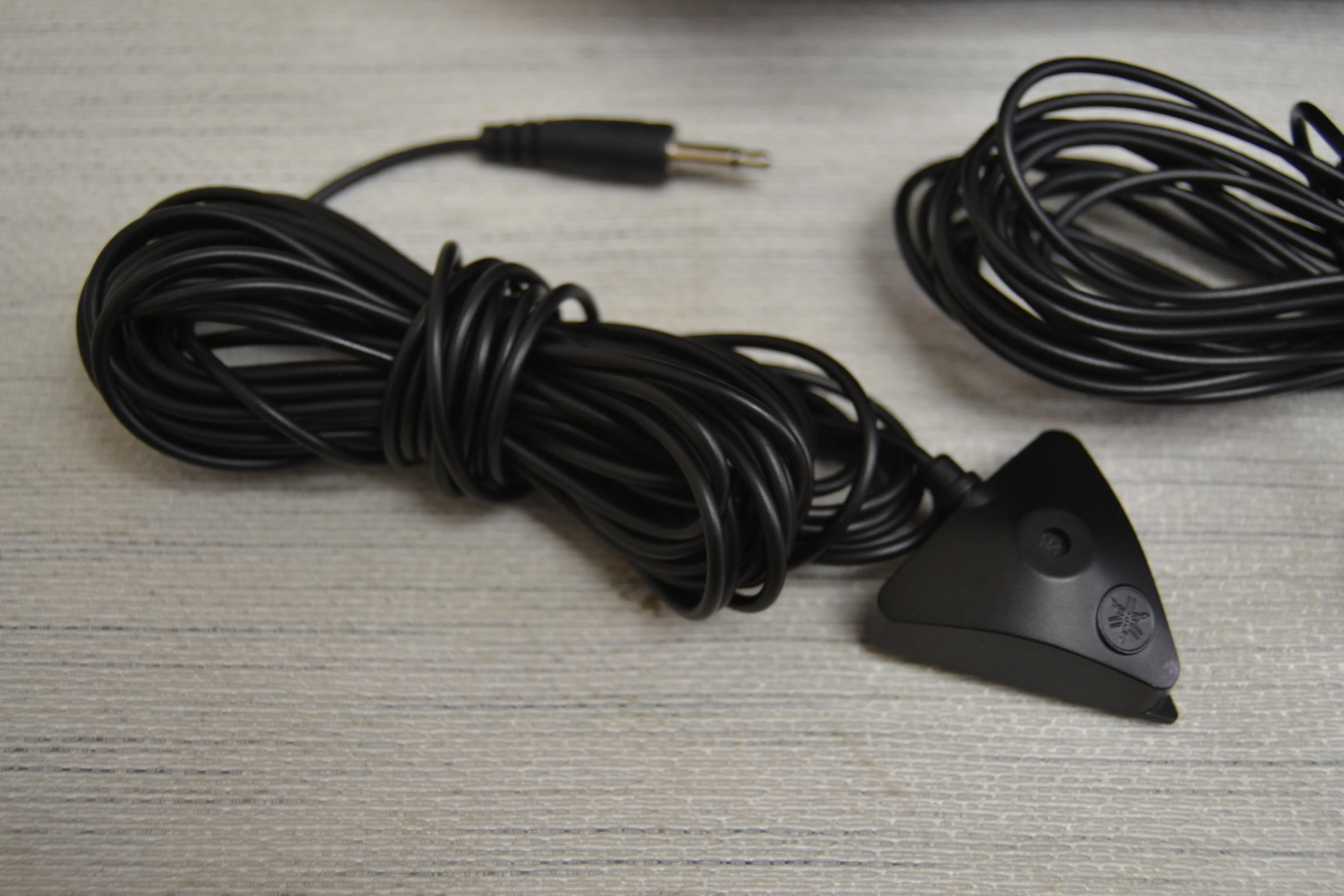

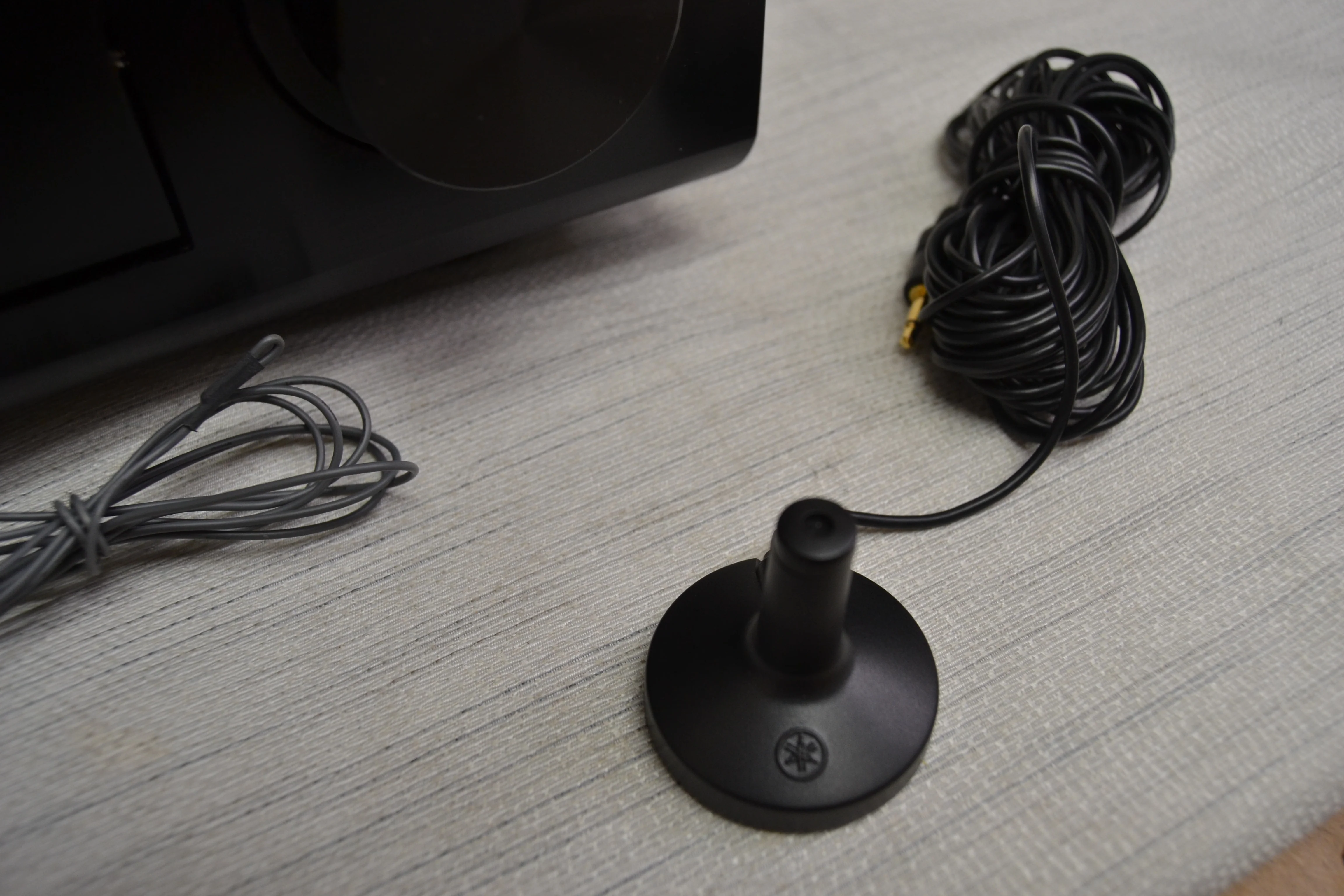

• YPAO (Yamaha Parametric Room Acoustic Optimizer) with multi-point measurement for automatic speaker calibration and more precise surround sound for up to 8 listening positions (microphone included)
• Cinema DSP modes add richness and depth to music and movie soundtracks
• Adaptive Dynamic Range Control limits the volume level on sound effects and commercials for more discreet late-night listening
• Dialogue Lift and Level Adjustment for clearer, louder dialogue while watching movies and shows

Digital and Streaming Music Options:

• Internet-ready for listening to music from a networked PC, free Internet radio, and music services
  • includes support for Pandora, Rhapsody, and vTuner (subscription required for some services)
  • Spotify Connect lets you play Spotify's streaming music library through the receiver via your smartphone or tablet (requires Spotify app and a premium subscription)
• Apple AirPlay for streaming music from an iPhone, iPad, iPod touch® or computer running iTunes
• front-panel MHL-ready HDMI input for accessing content from select Android smartphones and tablets
• front-panel USB input for connecting an iPod®, iPhone, iPad, or thumb drive
• plays high-resolution digital music files via USB storage device or a networked computer (up to 24-bit/192kHz resolution)
• DLNA and Windows® 7 certified for streaming music with compatible devices and computers
• add Wi-Fi® with an optional Yamaha adapter
• add Bluetooth streaming capability with the Yamaha Bluetooth adapter

Multi-room Audio/Video:

• four-room/four-source output
  • powered and line-level stereo audio output for 2nd and 3rd rooms (using powered 2nd- and 3rd-room outputs allows 5.2 home theater in main room)
  • HDMI dual-zone switching for watching HD content from different sources in two zones simultaneously
  • output any source to 2nd room via Zone 2 HDMI output
  • Intelligent Amp Assign automatically redirects surround back channels in Main zone to Zone 2 and/or Zone 3 speakers during multi-zone use
  • 2nd HDMI output assignable to Zone 4 (HDMI sources only)
  • Zone 4 only receives audio/video signals via HDMI; separate receiver required to power stereo or surround sound speakers
  • HDMI and optical/coaxial digital audio sources cannot be output to Zone 3

Audio Performance Features:

• dual 192kHz/24-bit ESS SABRE Premier digital-to-analog converters
• Ultra Low Jitter PLL circuitry reduces timing jitter from digital sources, for improved sound quality
• symmetrical power amp layout electrically isolates left and right channel circuitry for high signal-to-noise ratio and wider soundstage
• back surround speaker channels re-assignable for bi-amping compatible front left and right speakers
• Pure Direct mode switches off front-panel display, tone controls, and DSP circuitry for cleaner sound with analog audio sources
• Compressed Music Enhancer improves sound quality of MP3s and upconverts CDs and FLAC files to 24-bit/96kHz resolution
• reinforced chassis minimizes distortion even during high-volume output
• detachable power cable

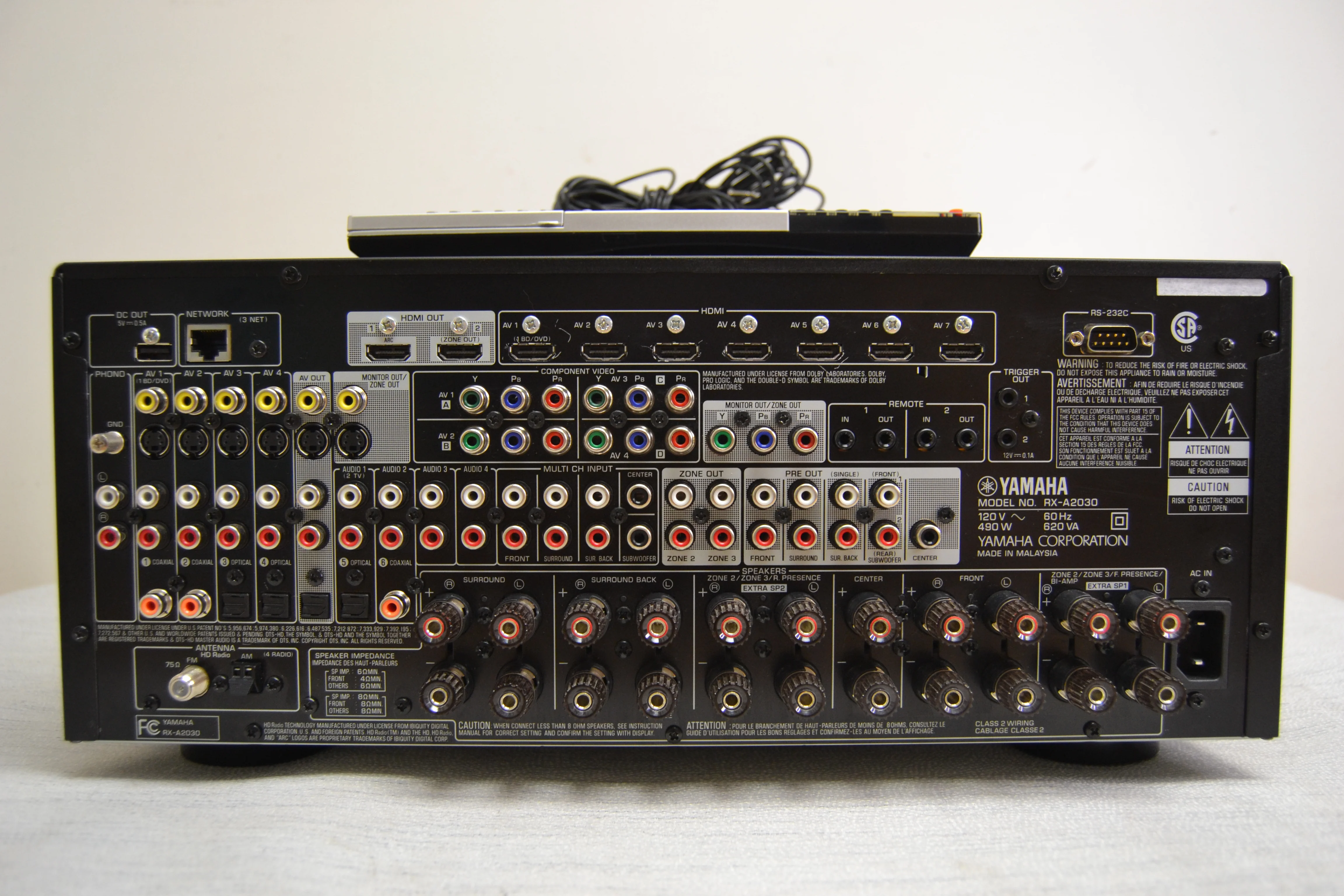

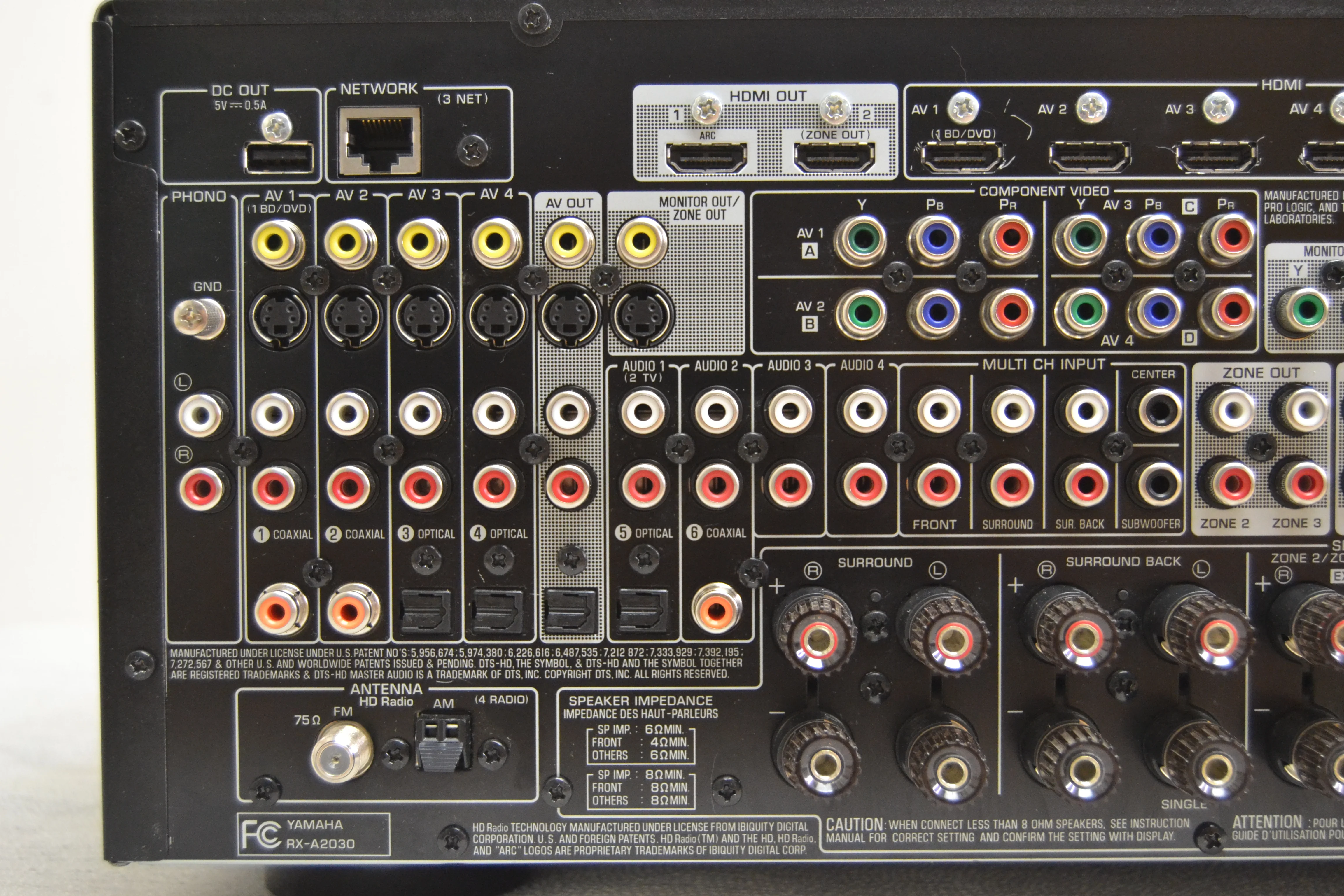

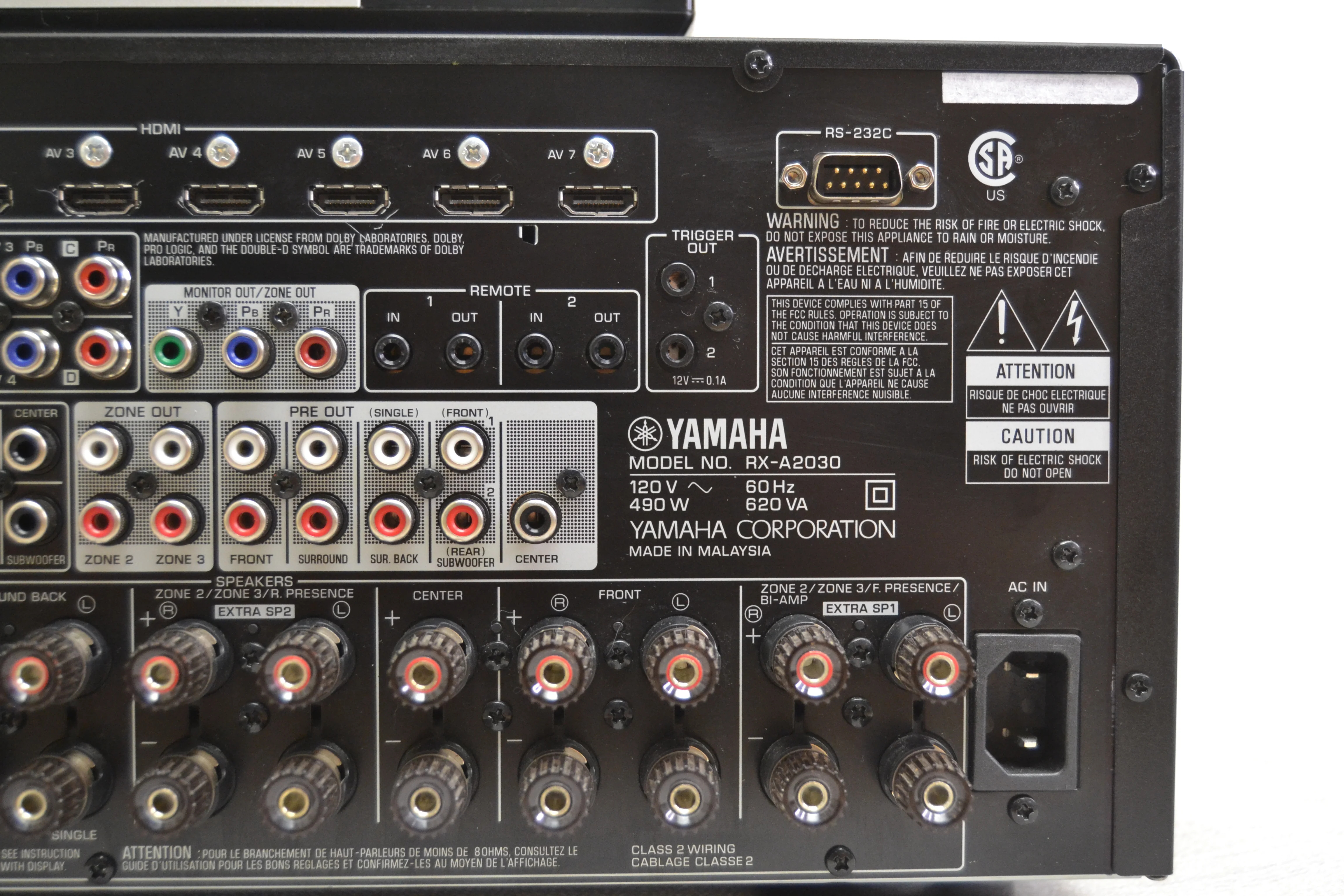

Connections:

• HDMI 1.4a audio/video switching: 8 in (includes front-panel input), 2 out
• component video switching: 4 in, 1 out
• composite video switching: 5 in (includes 1 front-panel input), 1 assignable out
• S-video switching: 4 in, 1 assignable out
• digital audio inputs: 4 optical (including 1 front-panel input) and 3 coaxial
• 1 optical digital audio output
• 9 analog stereo audio inputs (includes 1 front-panel input)
• 7.1-channel preamp inputs
• 7.2-channel preamp outputs include outputs for 2 powered subwoofers
• phono input for use with a turntable
• Ethernet port for network connection

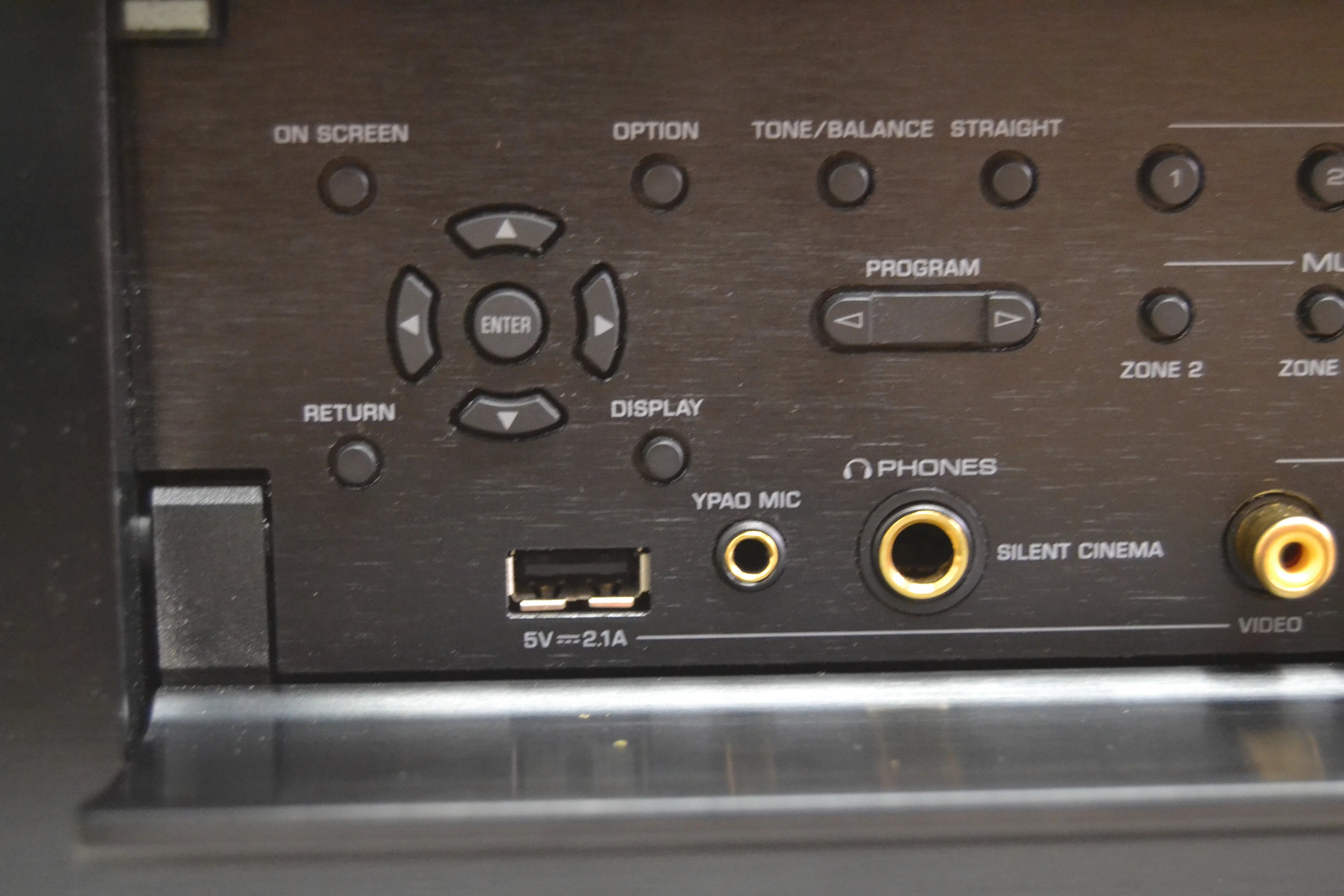

• front-panel USB port for audio playback from USB flash drives, hard disk drives, and portable music players
• rear-panel USB port for add-on Wi-Fi or Bluetooth adapters
• outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back/Bi-Amp L/R, Zone 2/Rear Presence L/R, Zone 3/Front Presence L/R)
• receiver can power a maximum of 9 channels at once

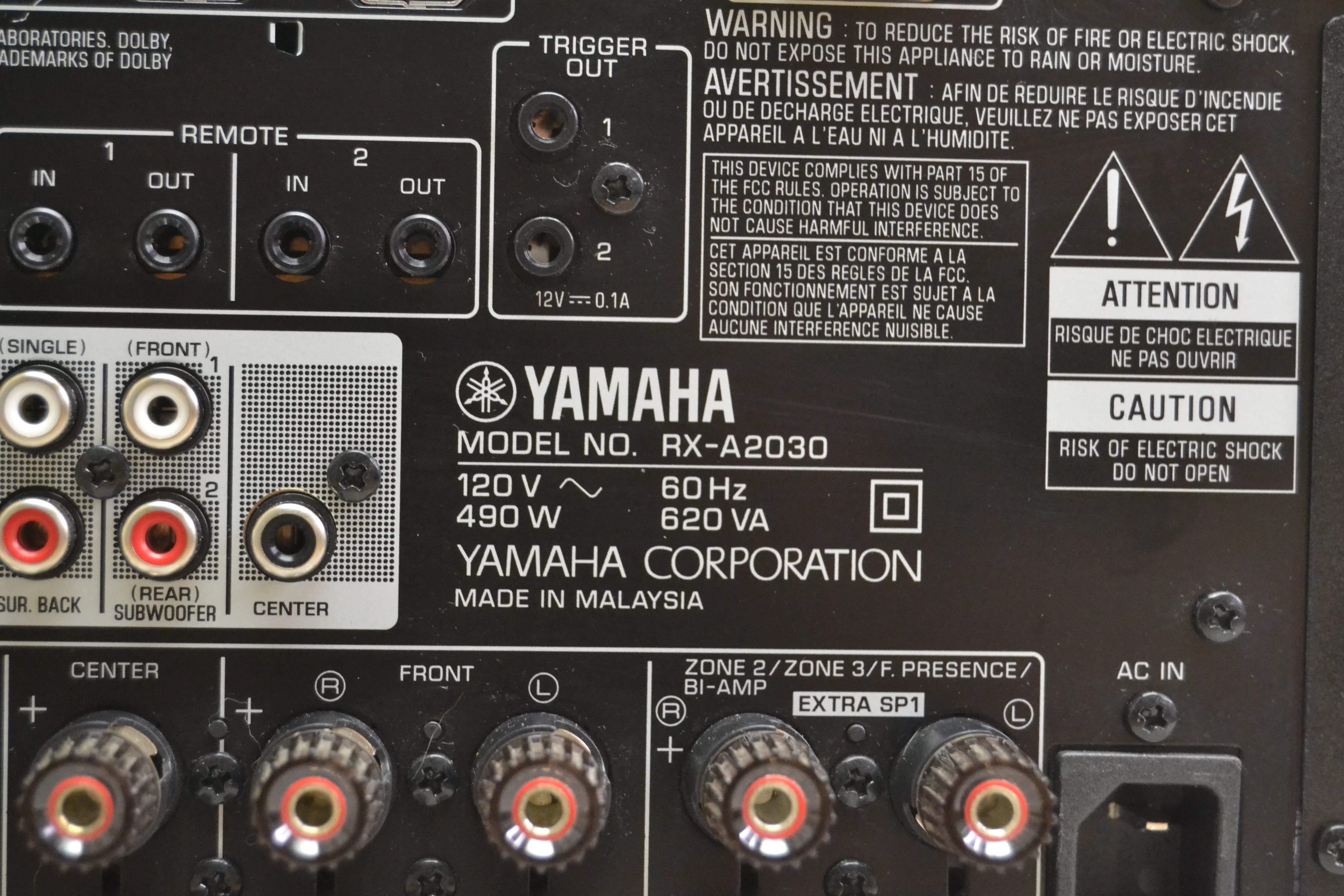

• RS-232C input, 2 remote inputs/outputs (IR) and 12 volt-trigger output for use with external controllers

General Features:

• 4K and 3D video pass-through and upscaling
• free Yamaha A/V Controller app lets you use your Apple or Android device as a Wi-Fi® remote
• 12 SCENE Plus presets for one-touch power-up, source selection and DSP recall
• full-color on-screen display
• HDMI standby pass-through allows HDMI switching without powering up receiver
• built-in HD Radio™ tuner
• AM/FM tuner
• backlit LED learning remote control
• 17-1/8"W x 7-1/2"H x 19-3/8"D
• weight: 37.7 lbs.
