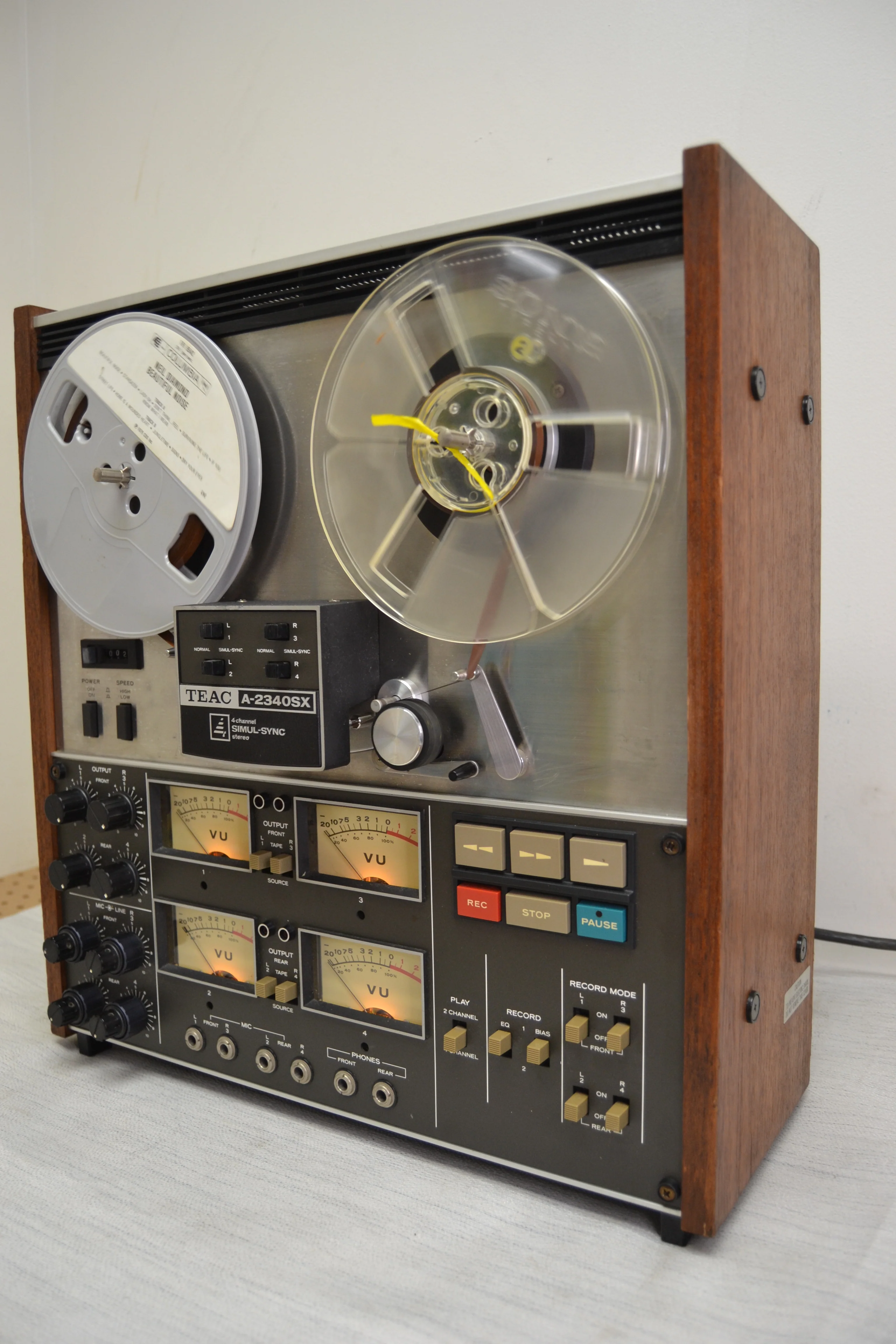

Teac A2340SX Reel to Reel * 7 in * Fully Serviced
TEAC A-2340SX
4-Channel Stereo Tape Deck
Description
The TEAC A-2340SX 4 channel open reel tape deck was manufactured with pride by the craftsmen of TEAC Corporation.
It contains all of the features which made the earlier A-2340RS one of the most popular 4 channel open reel tape decks ever sold.
In addition, the A-2340SX has built in SIMUL-SYNC and an added CUE lever function. It offers operating speeds of 7.5 and 3.75 inches per second.
The basic design of the A-2340SX is highly similar to that of the A-2340RS.
Specifications
Track system: 4-track, 4-channel, stereo/monaural/multi channel system
Heads: 1 x erase, 1 x record, 1 x playback
Motor: 2 x reel, 1 x capstan
Reel size: up to 7 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.18% (7 1⁄2 ips)
Signal to Noise Ratio: 47dB
Total harmonic distortion: 1.5%
Crosstalk: 35dB
Input: 97mV (line), 0.25mV (mic)
Output: 0.3V (line)
Dimensions: 440 x 475 x 220mm
Weight: 21kg
